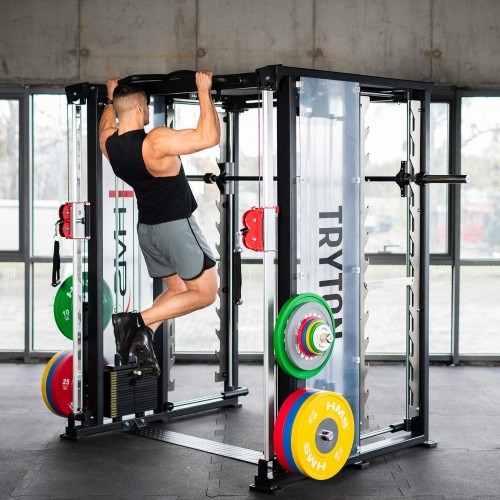

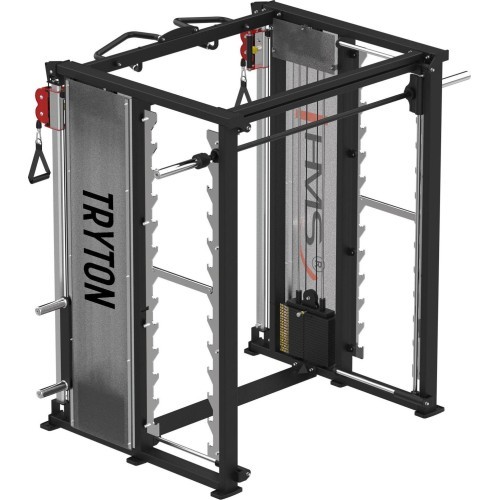

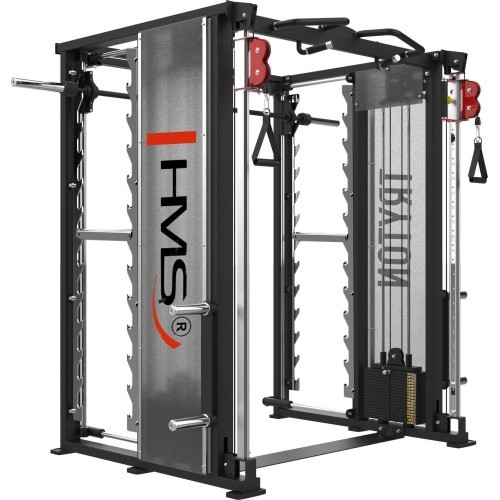

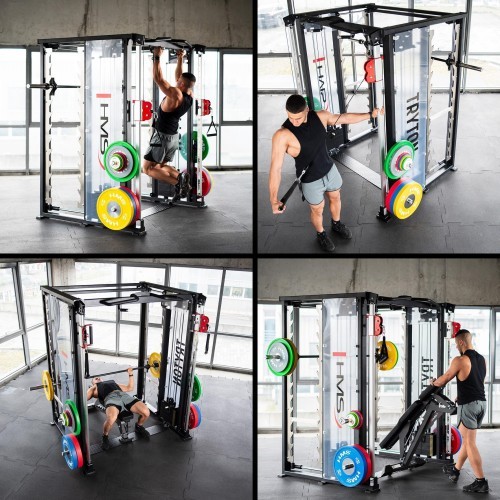

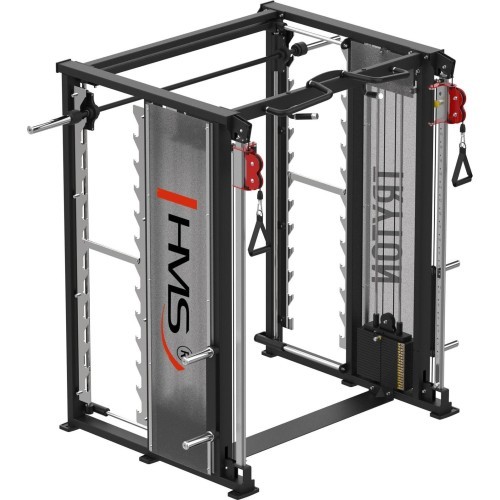

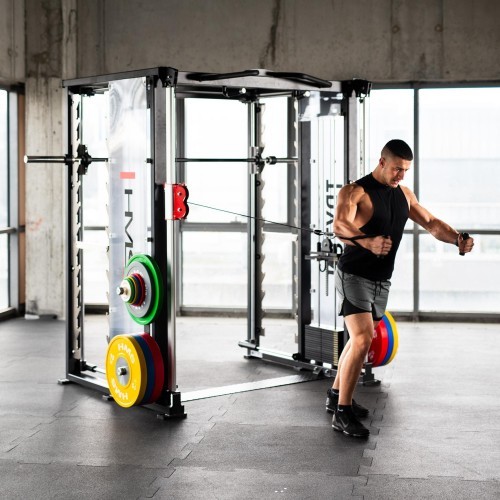

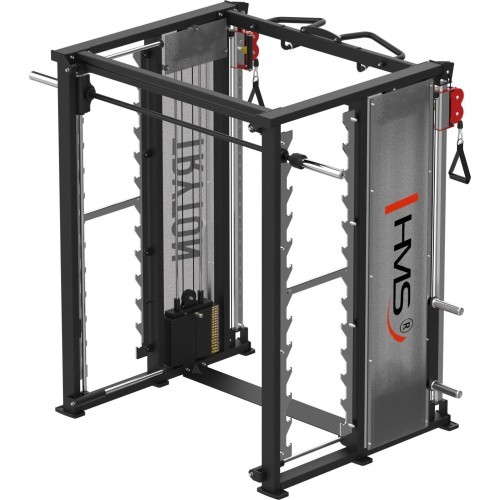

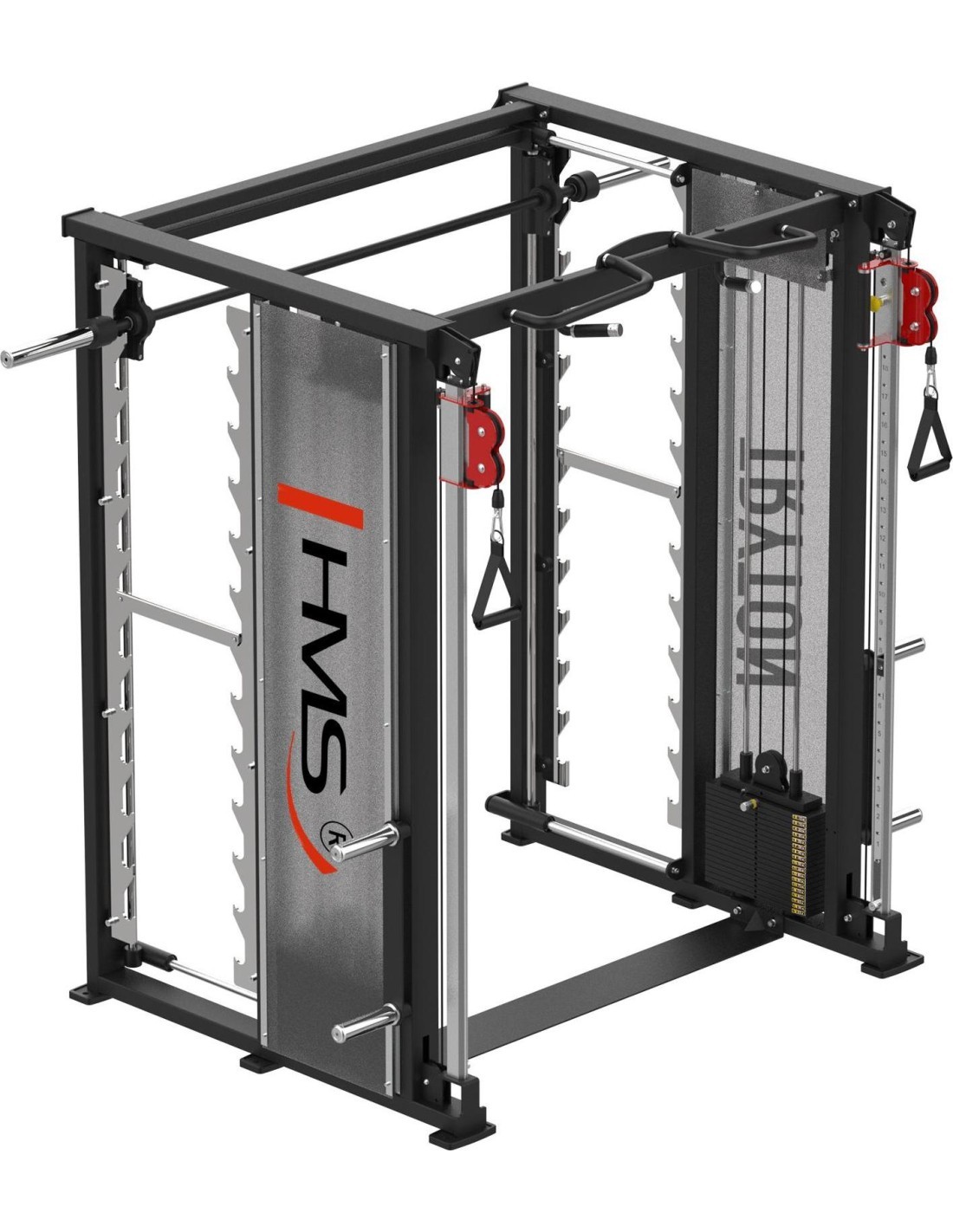

TRYTON SMITH MACHINE 3D WITH DOUBLE LIFT AND STACK COMMERCIAL HMS

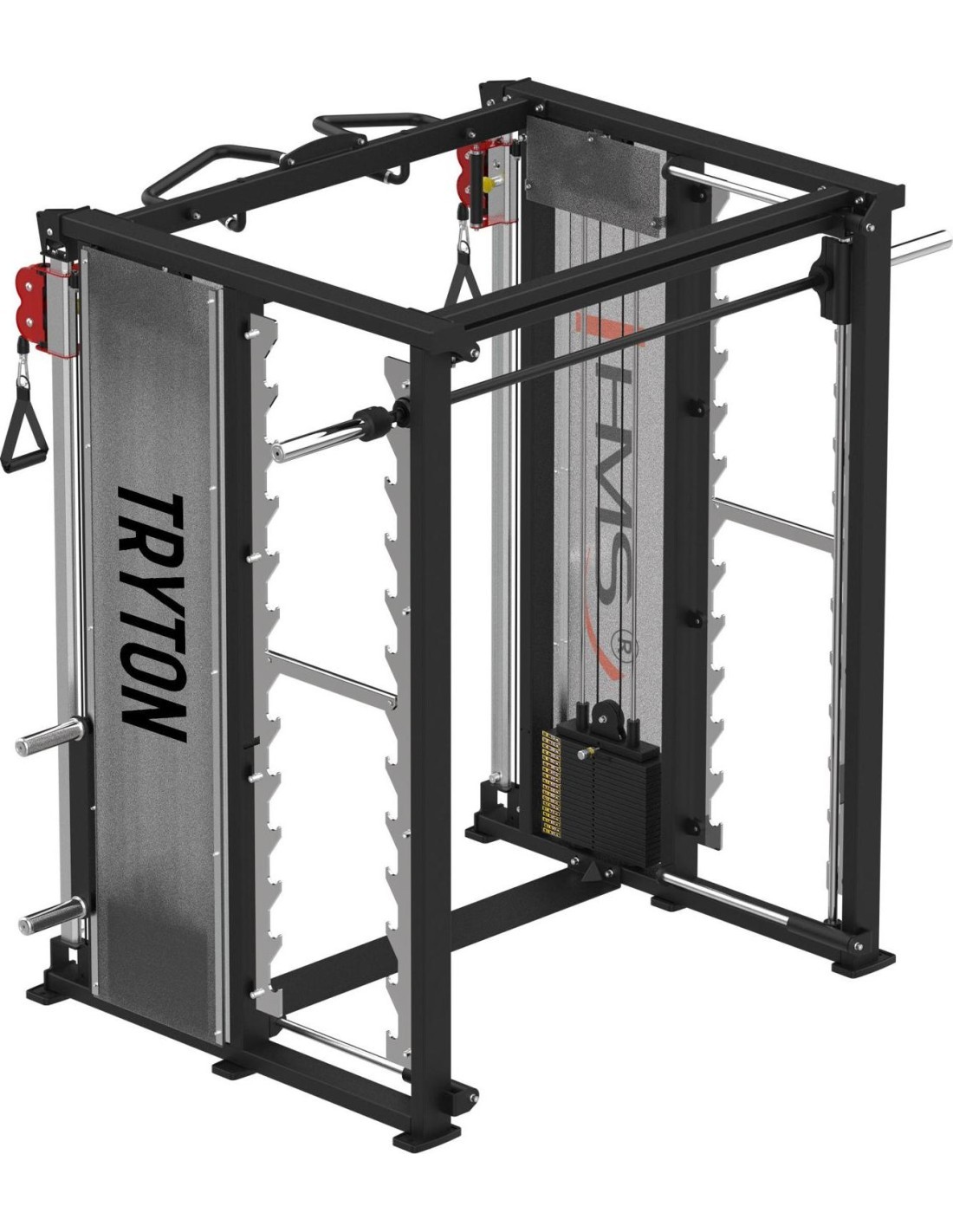

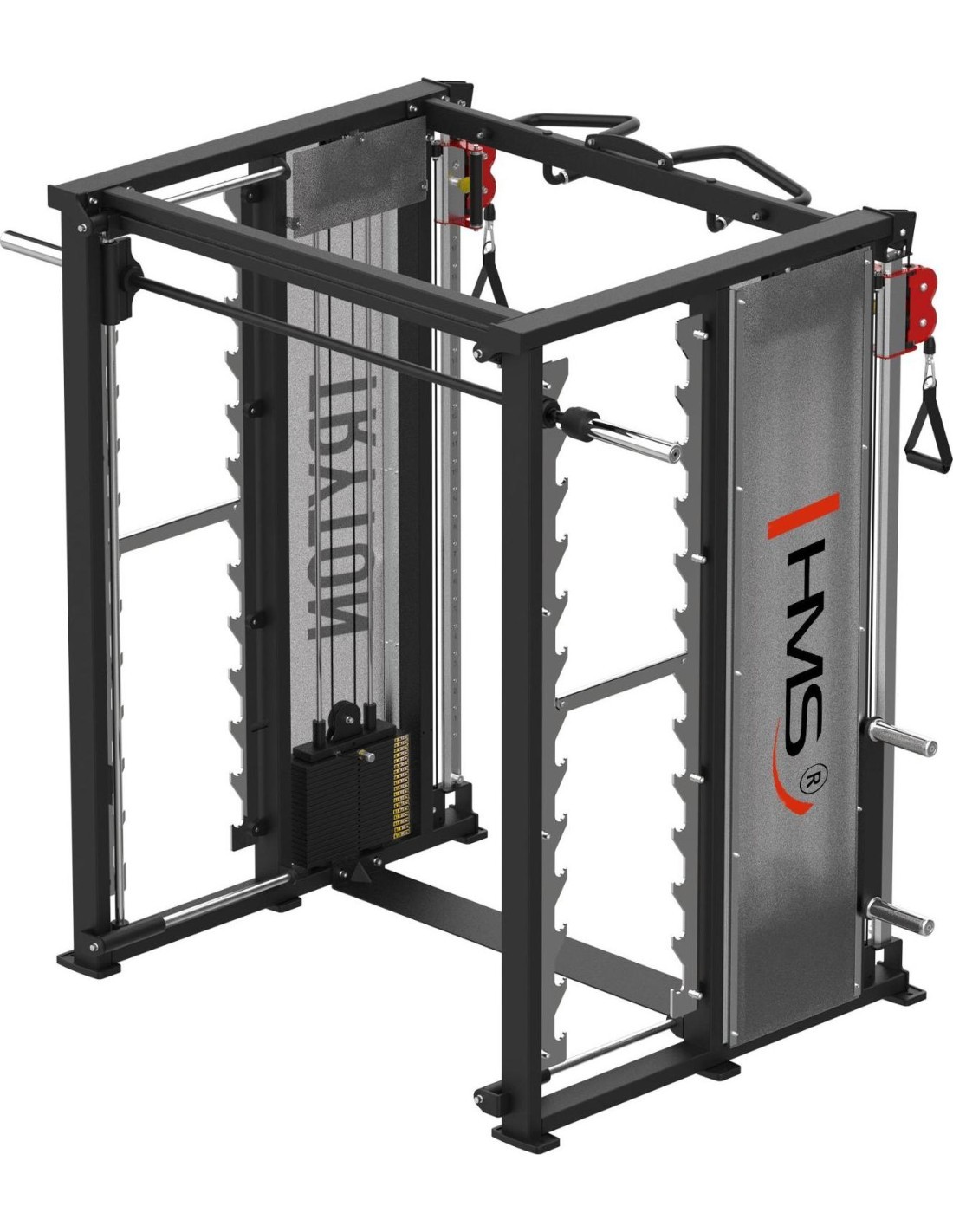

TRYTON – 3D Smith Machine Frame for Commercial Use

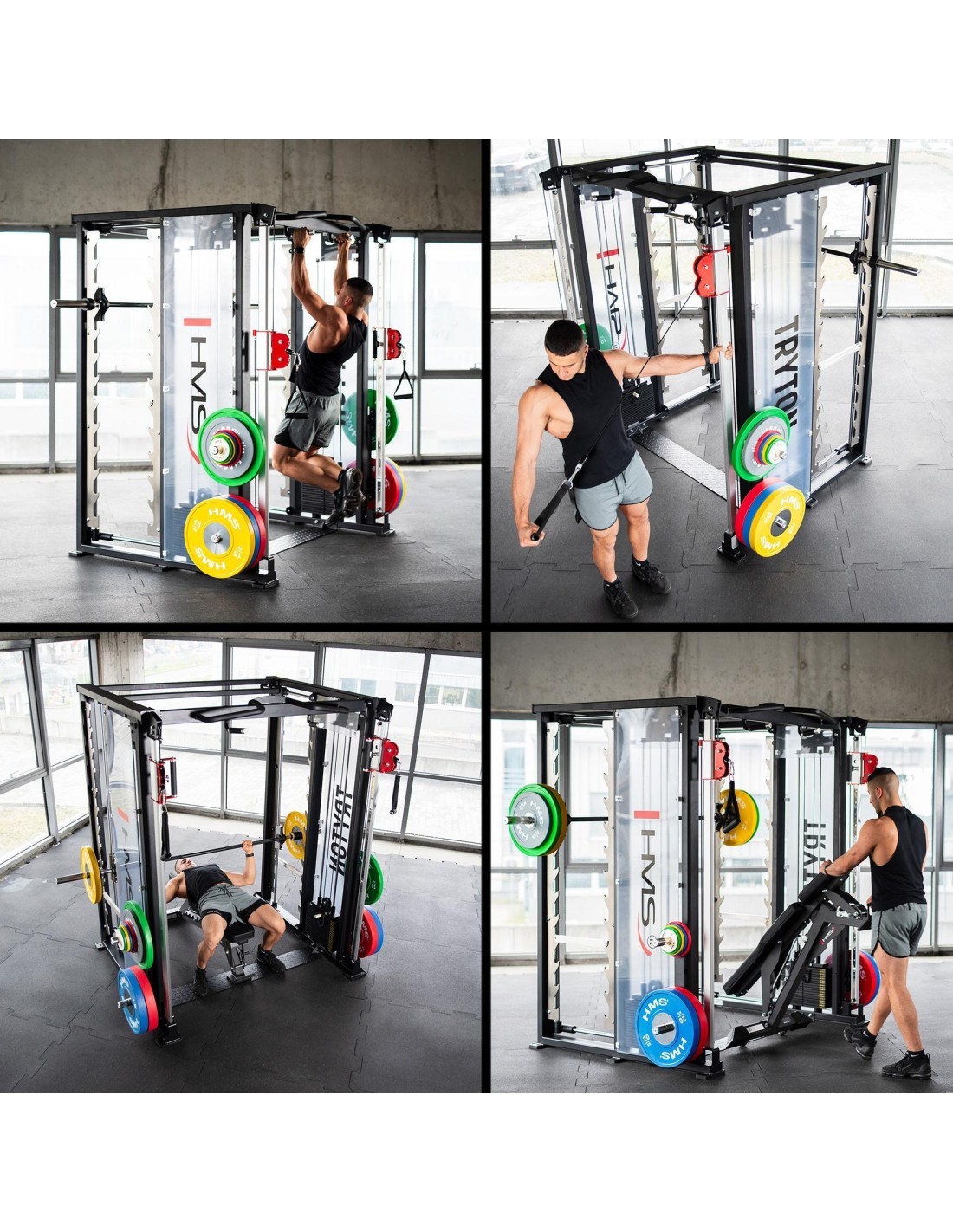

TRYTON is an advanced 3D Smith machine frame with dual weight stacks and cable system, designed for heavy-duty use in fitness clubs and personal training studios. The movement in two axes (vertical + front/back) replicates the natural exercise path, improves control during eccentric/concentric phases, and supports progressive overload in high-throughput strength zones.

Innovative 3D Smith Mechanism – Advantage Over Classic Design

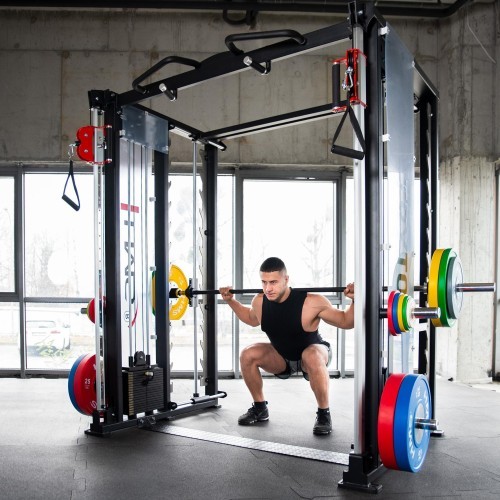

Unlike a rigidly guided Smith machine, the 3D mechanism allows slight front–back movement, enabling users to adjust the bar path to their individual biomechanics. This reduces discomfort, enhances muscle activation, and allows for more precise starting positions. In commercial environments, it translates into safer and more consistent training sessions for different user types.

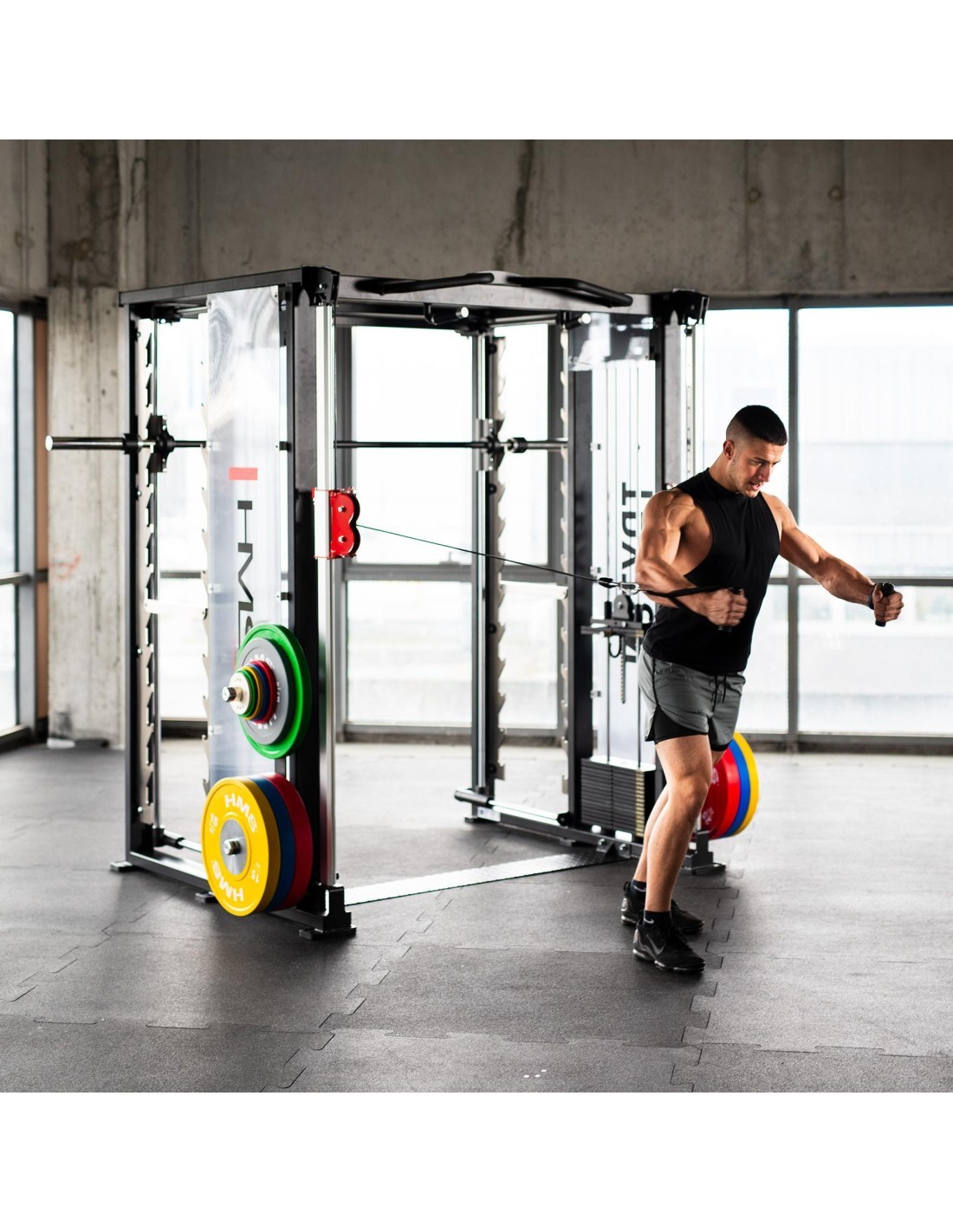

Versatile Dual Cable System – The Heart of Functional Training

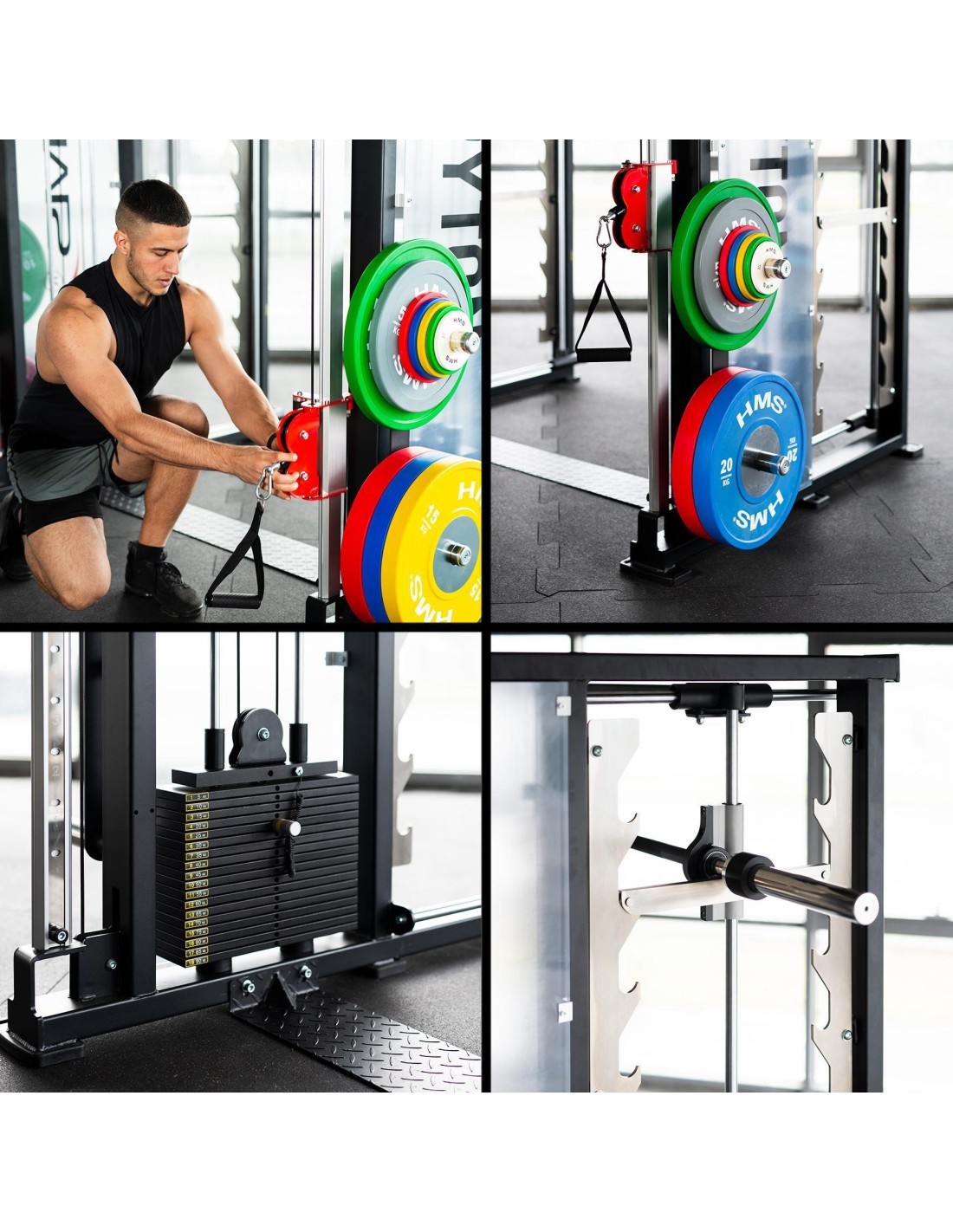

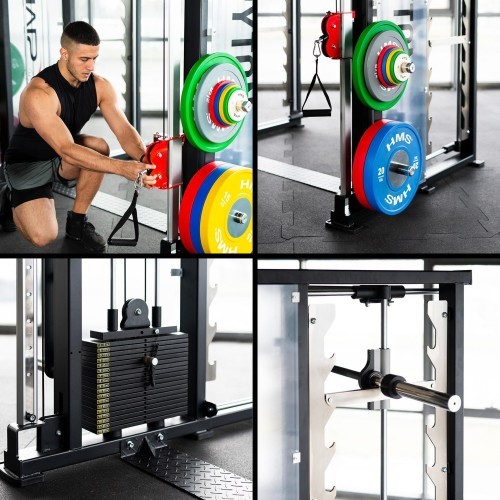

The dual stack of 2 × 90 kg with 5 kg increments and 21 height adjustment levels for handles ensures full training flexibility. It allows smooth transitions from upper to lower body exercises and enables push–pull circuits for multiple users. The 1:2 pulley ratio provides precise resistance control and adaptability to all training levels.

Commercial-Grade Construction and Parameters

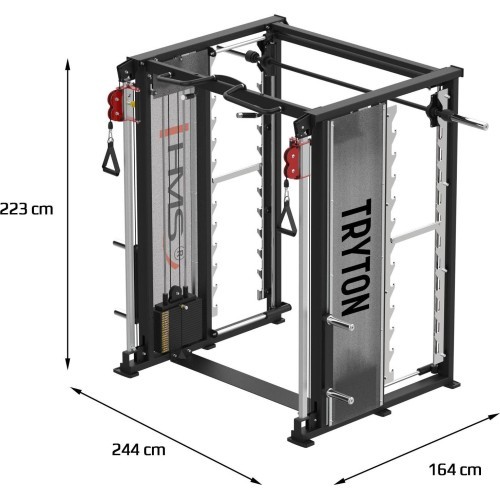

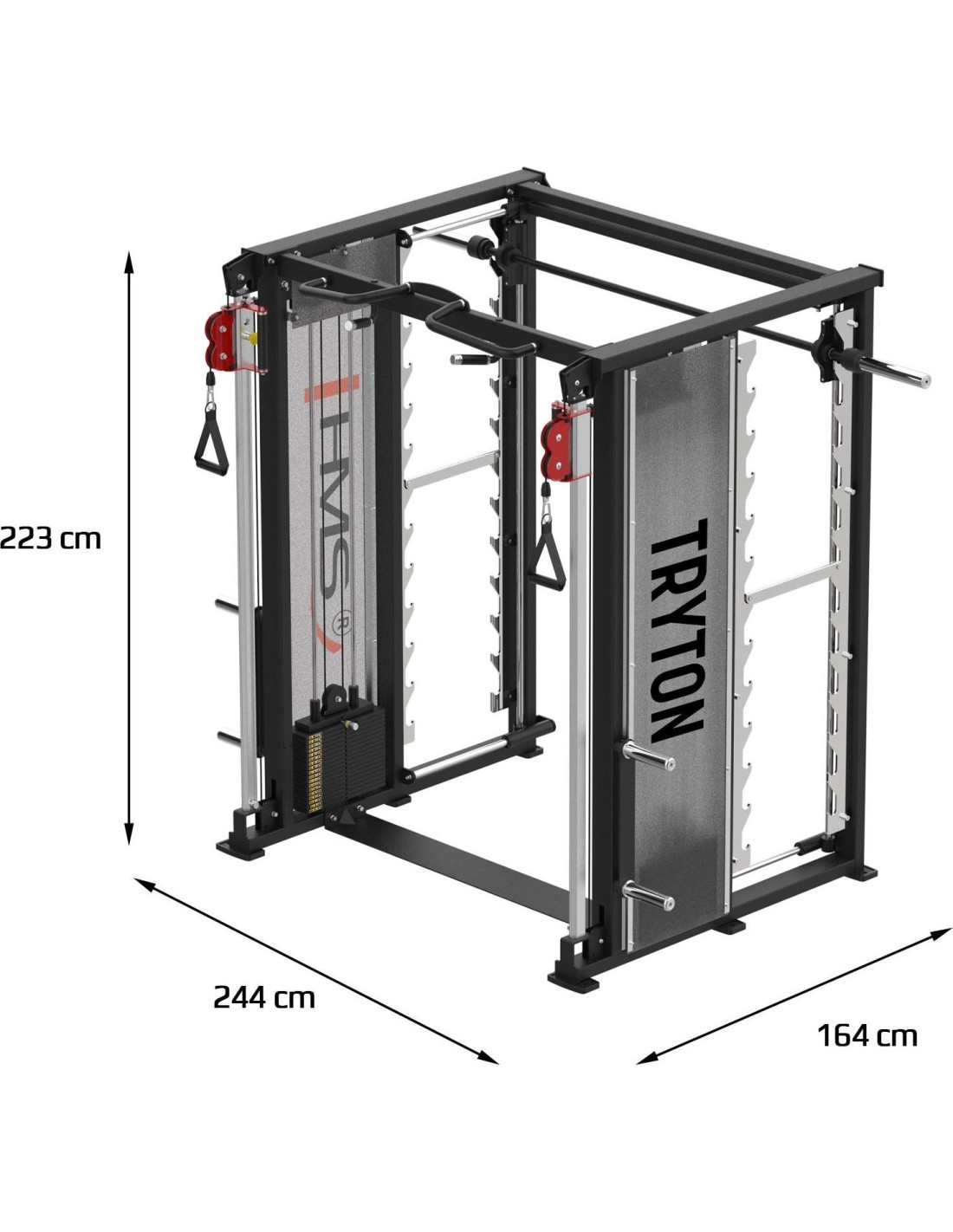

The frame is made of 100×50×3 mm steel profiles in Q235 grade, with a total weight of 520 kg, ensuring outstanding stability under heavy loads. The setup includes 4 plate holders (20 cm long, 5 cm diameter, up to 100 kg per pin) and 12 bar hooks for convenient storage. Dimensions make spatial planning easy: 164 × 244 × 223 cm (L × W × H), distance between frames 152 cm, pull-up bar 104 cm (diameter 3.5 cm), sleeve diameter 50 mm, max bar load 300 kg, max user weight 150 kg. The design allows for floor anchoring, and total cable length is 842 cm.

Long-Term Investment – Warranty and Service Conditions

This model includes a 2-year warranty, extendable to 5 years for the frame and 1 year for wear components such as cables and bearings. This coverage helps plan maintenance costs and minimizes downtime risks in commercial facilities.

Application Summary

TRYTON is ideal for clubs focused on safe strength progression and high equipment utilization, as well as for personal training studios where one machine must cover a wide range of needs — from classic Smith patterns to isolated cable work.The 3D guidance, precise adjustments, and robust safety features ensure consistent movement patterns and training tempo across different user groups.

When planning your strength zone, start from the Smith Machines & Frames section and compare similar models like CYKLON X, CYKLOP 5 or CYKLOP 2. For larger projects, see our guides: Comprehensive Gym Equipment Setup Step by Step, leg training tips (Best Thigh Exercises) and home gym inspiration (Home Gym – Build Your Own Gym at Home).

Key Features:

• Type: 3D Smith machine frame for commercial use.
• Weight stacks: 2 × 90 kg, 5 kg adjustment.
• Adjustments/Safety: 21 height positions, 12 hooks.
• Pulley ratio: 1:2; floor anchoring option.
• Dimensions/Weight: 164 × 244 × 223 cm, 520 kg; Q235, 100×50×3 mm.
• Extras: pull-up bar 104 cm / 3.5 cm diameter, plate holders 4 × (20 cm, 5 cm diameter, up to 100 kg).
