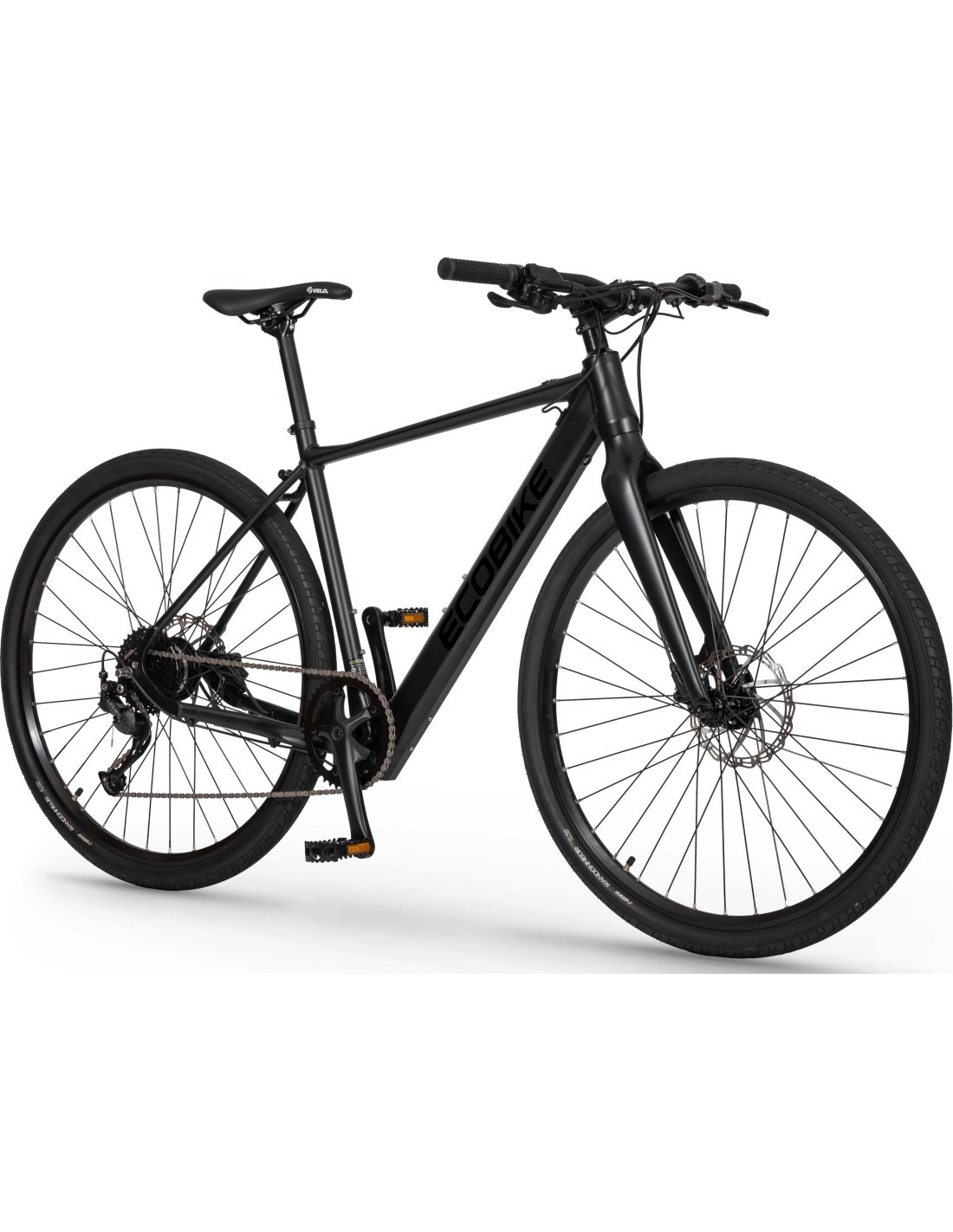

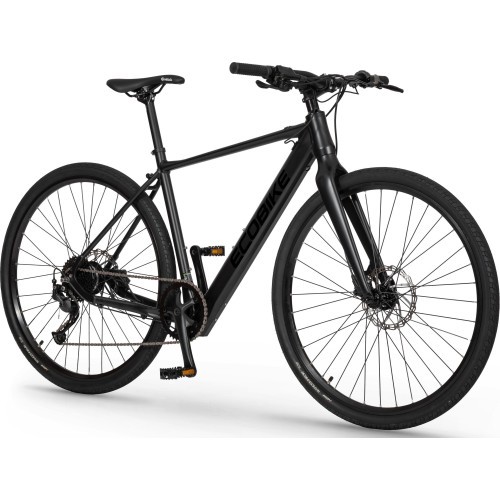

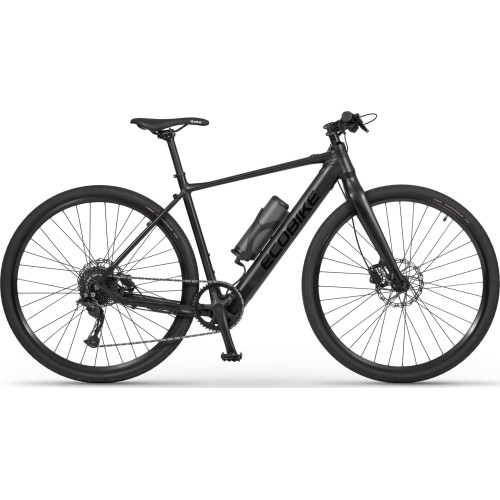

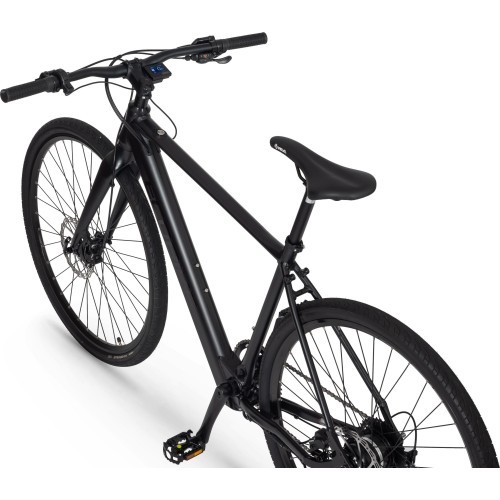

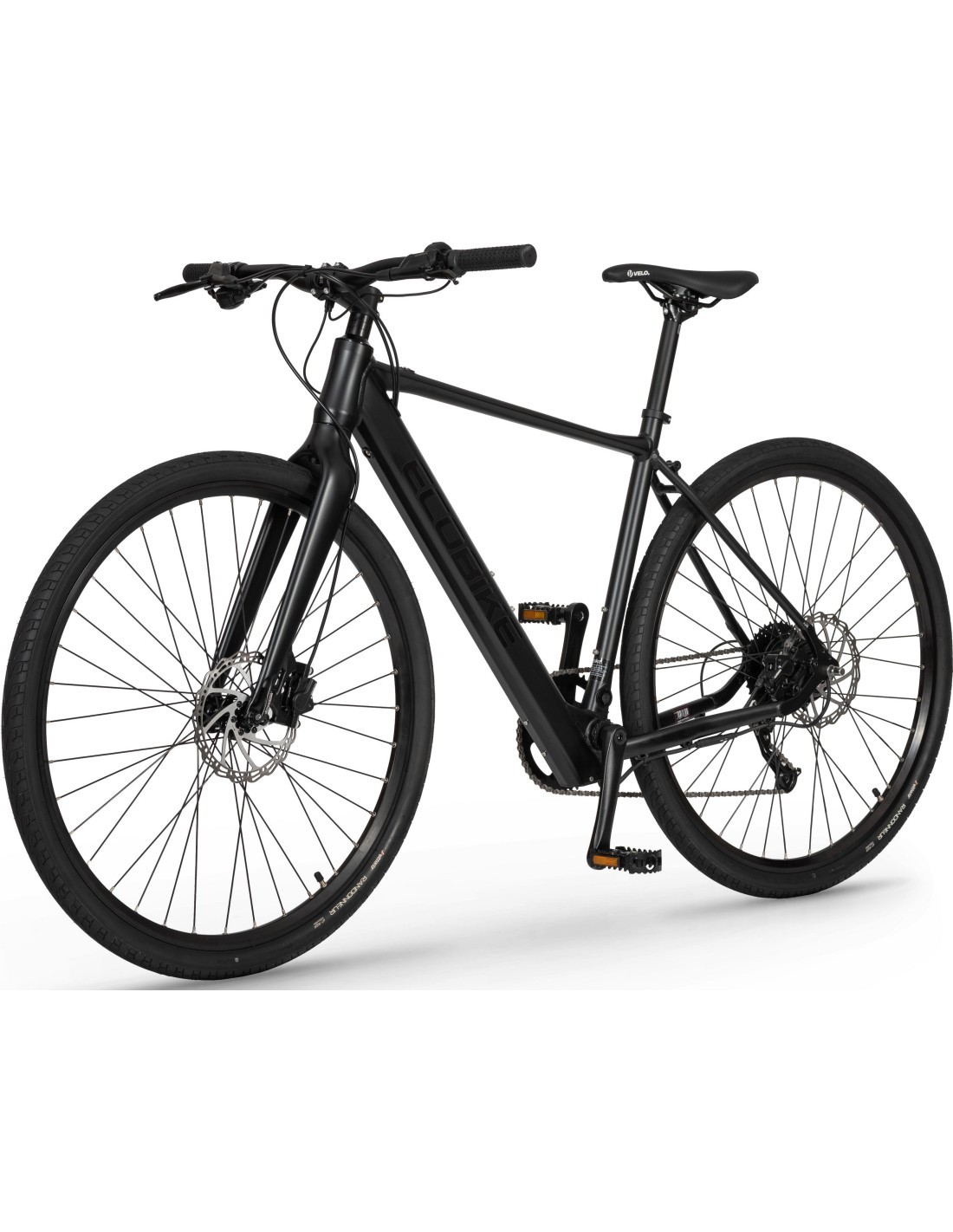

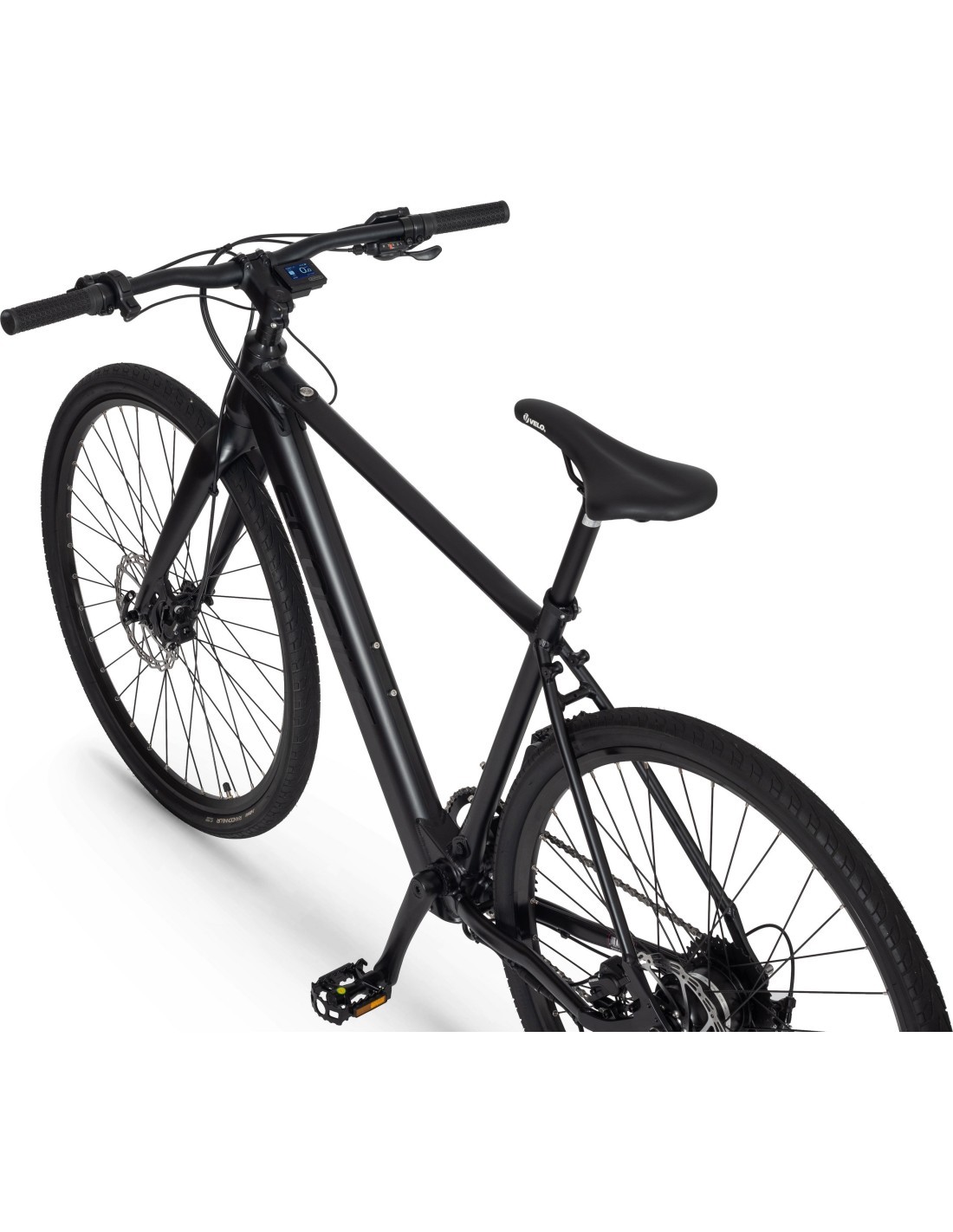

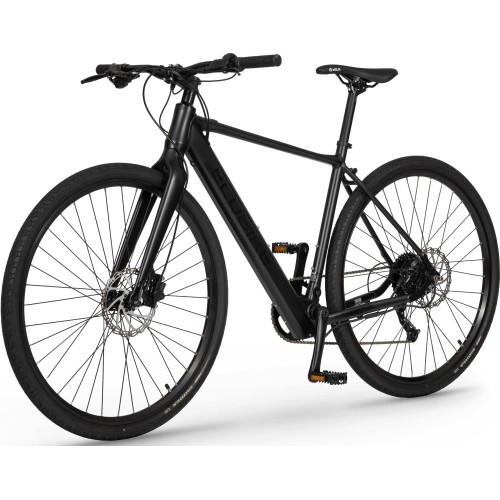

Ecobike Urban Plus Electric Bike 10 + 7 Ah 601Wh

Ecobike is one of the first e-bike manufacturers in Europe, with many years of experience in electric bicycle production and an ideal price-to-quality ratio. Its world-class components are carefully assembled with a love for bicycles in Poland - qualities that have earned trust across the entire European continent.

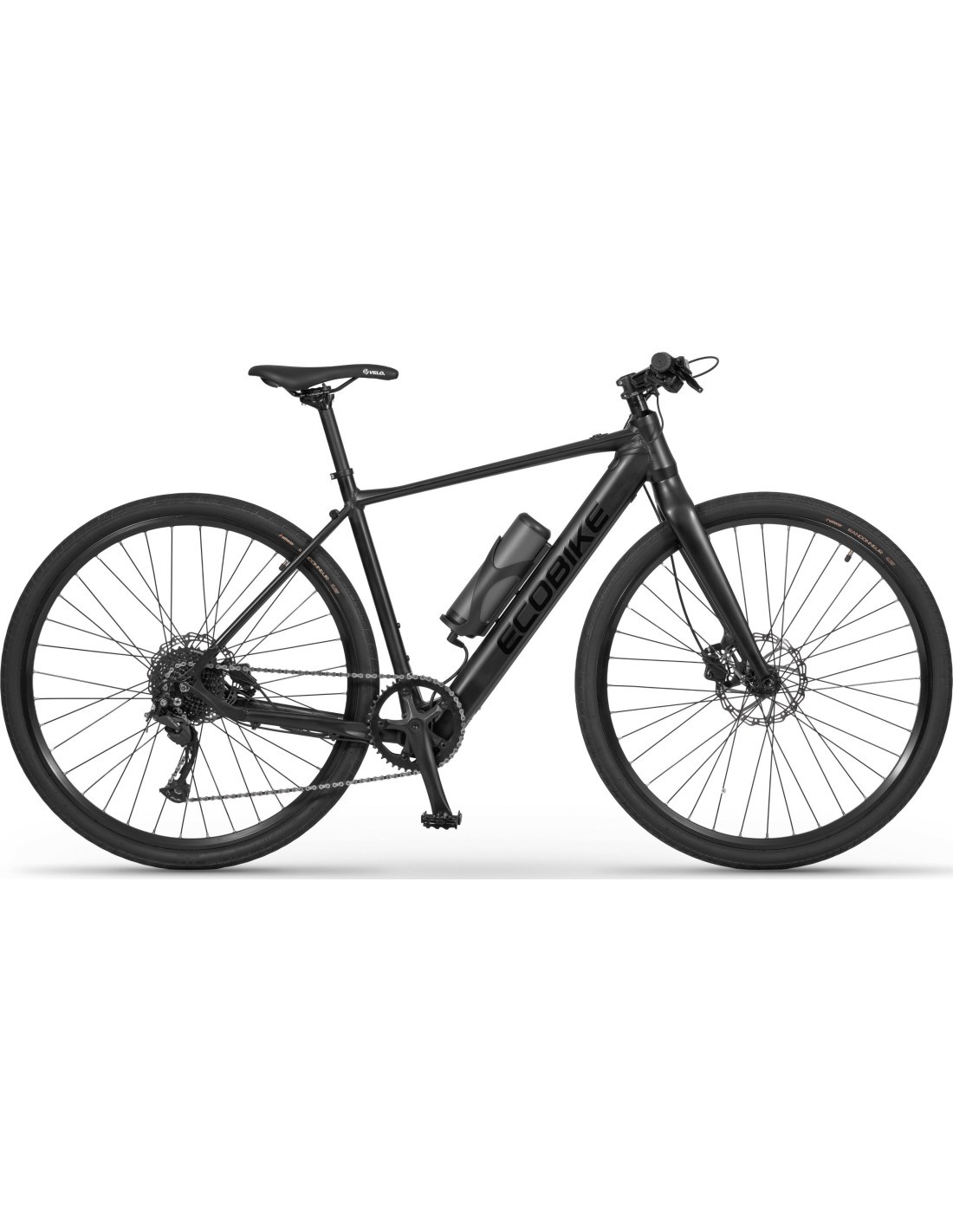

The Urban bike in the Plus version comes with an additional bottle battery, giving a total capacity of over 600 Wh.

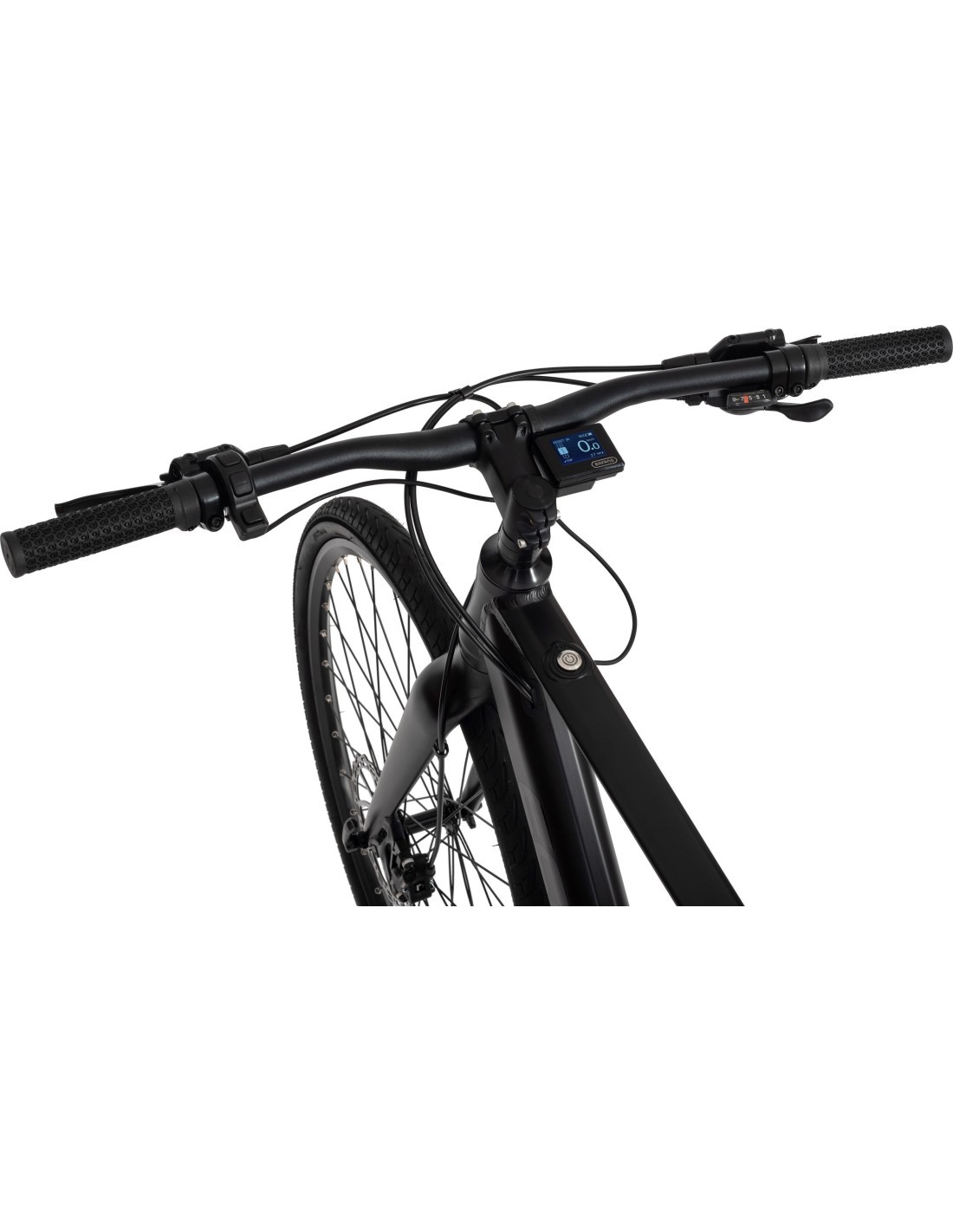

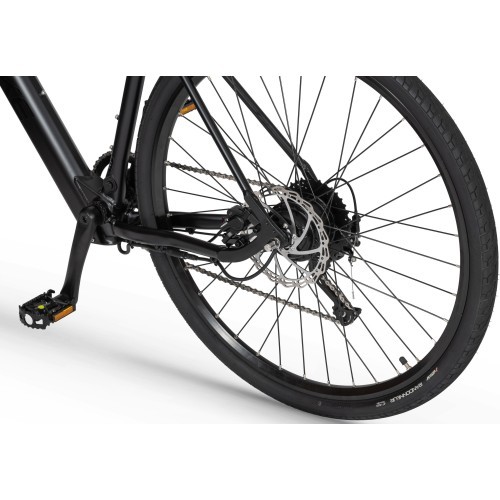

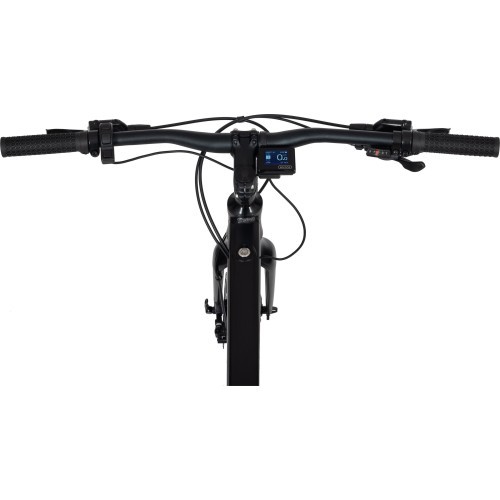

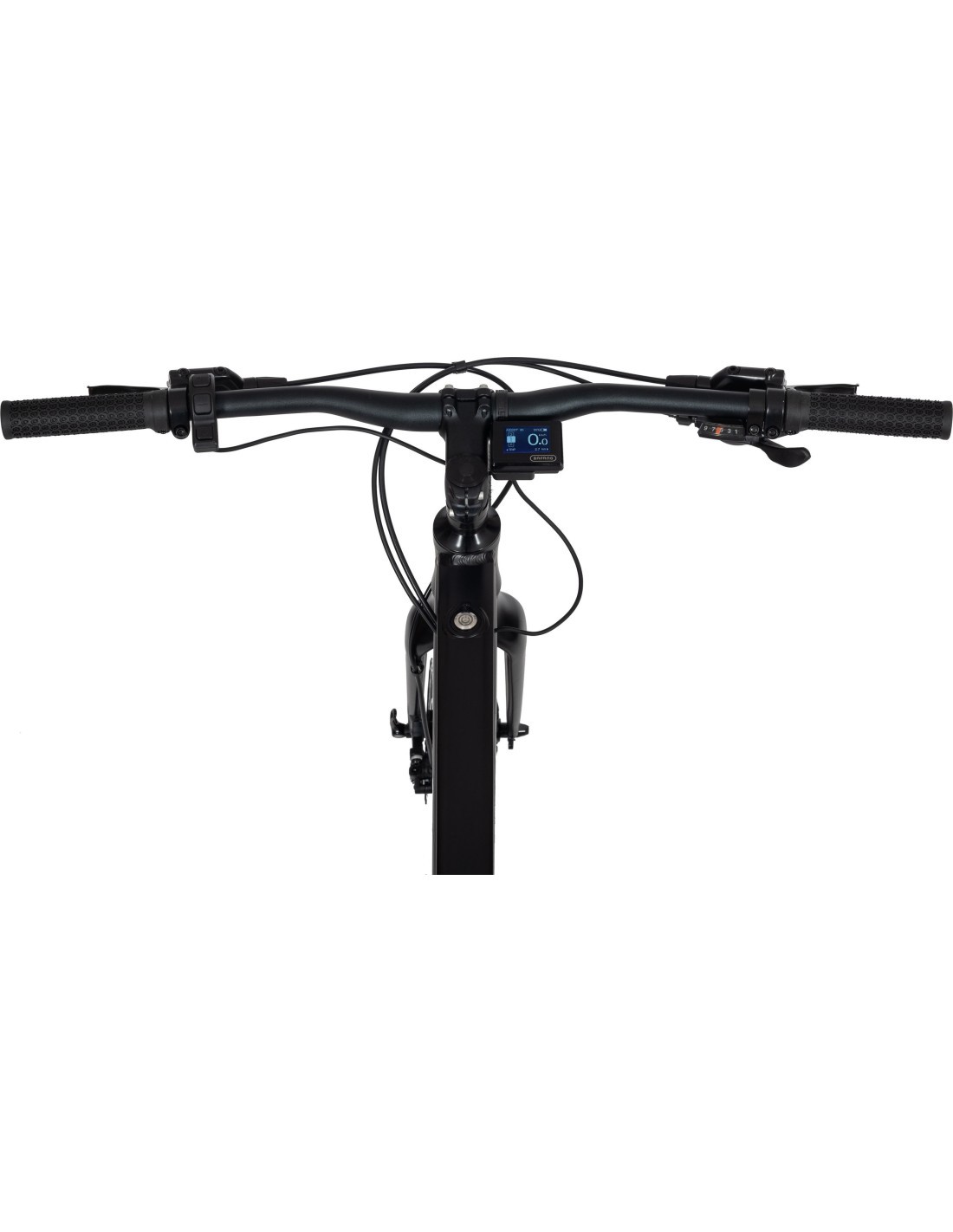

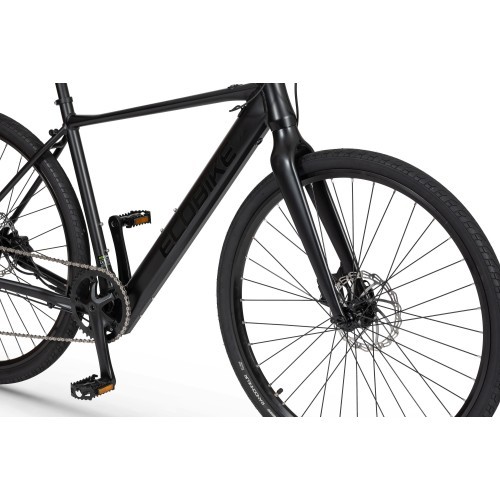

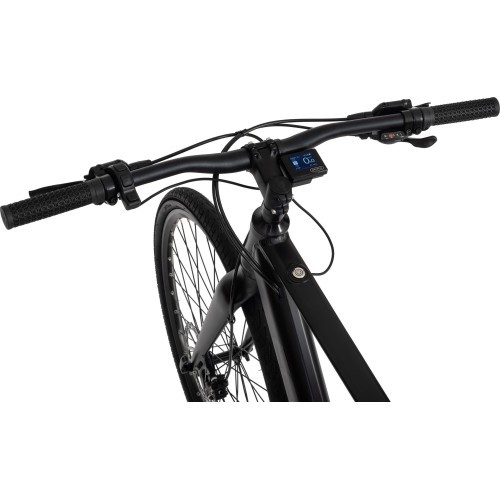

At first glance it is hard to recognise the Urban as an electric bike, yet it is a true e-bike. Its electrical components are hidden in the rear hub, where the motor is discreetly mounted, and in the frame with its covered battery. The display sits inconspicuously but practically right next to the stem. The whole system is based on Bafang technology. The bike was meant to be minimalist, and this unique style has been fully achieved.

Built around a proven aluminium frame and Shimano components, it is ready to meet every city challenge. The components were thoughtfully selected. Shifting is handled by a 9-speed drivetrain: a Shimano Alivio derailleur controlled by a Shimano Altus shifter, combined with a well-staged cassette, letting you choose the right gear without straining your legs. Powerful and precise Alhonga hydraulic disc brakes help you feel safe while riding. Vittoria City Randonneur tyres provide good grip and low rolling resistance, making the bike extremely easy to ride.

Subtlety, aesthetics, lightness - all in one bike: the Ecobike Urban.

Technical specifications

Range

• Battery capacity and approximate range: 349.2 + 252 Wh: MAX 120 km

Motor

• Voltage: 36V

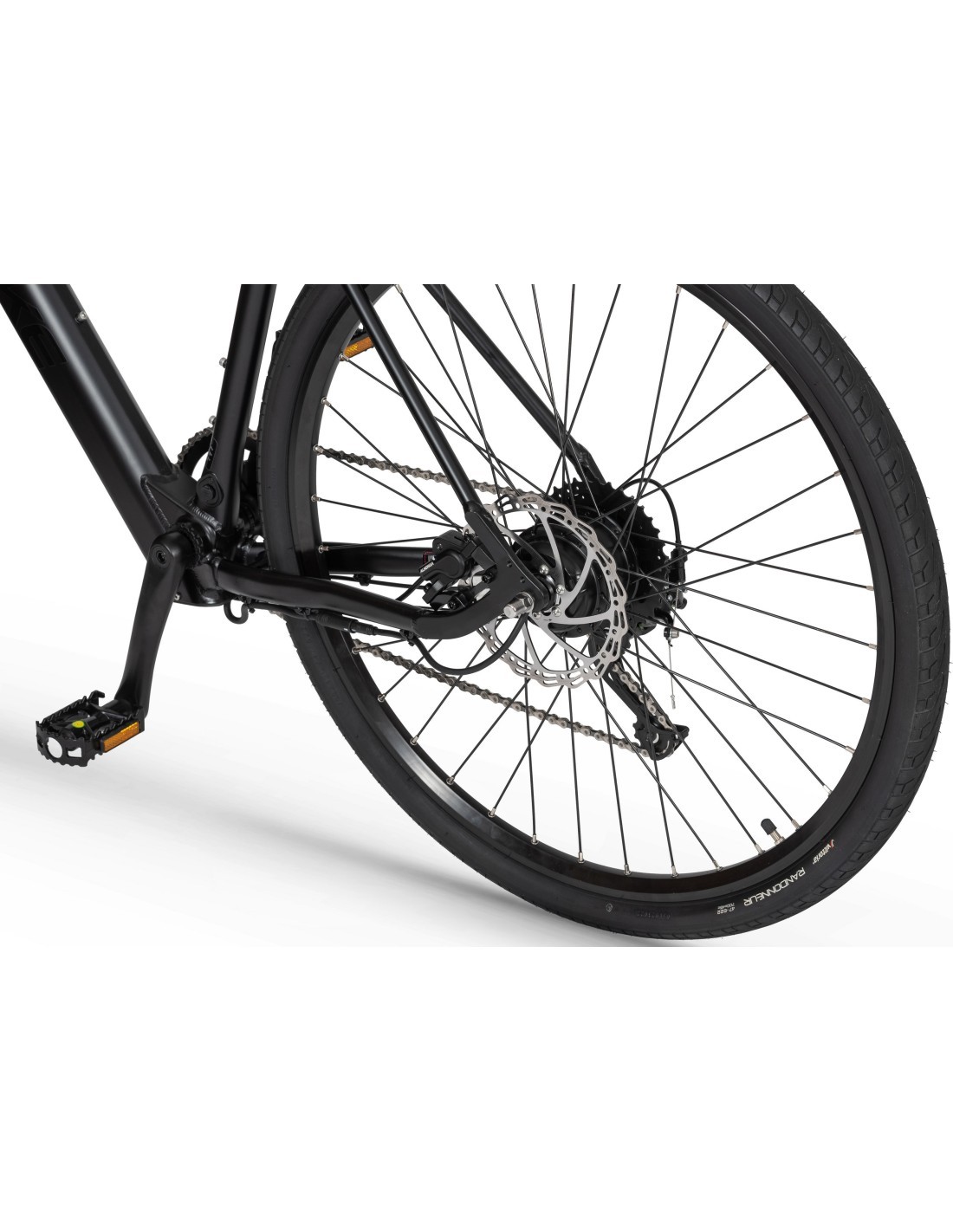

• Motor mounted in the rear wheel
• Maximum motor-assisted speed: 25 km/h per EU standard EN 15194
• Torque: 30 Nm
• Manufacturer: BAFANG
• Power: 250 W

Battery

• Integrated in the frame (hidden)
• Battery life (approx.): 700 charges
• Charging time: ~5 h
• Type: Li-ion
• Voltage: 36V
• Charger: 220-240V 42V 2A D type
• Cell manufacturer: LG
• Smart BMS (Battery Management System)
• The battery can be charged while removed from the bike (convenient for home charging)

Components

• Frame: Aluminium, hydroformed tubes
• Frame size: 19"
• Fork: Rigid, aluminium
• Brakes: Tektro HD M275 hydraulic disc
• Chain: KMC X8NP 1/2"*3/32"*110L

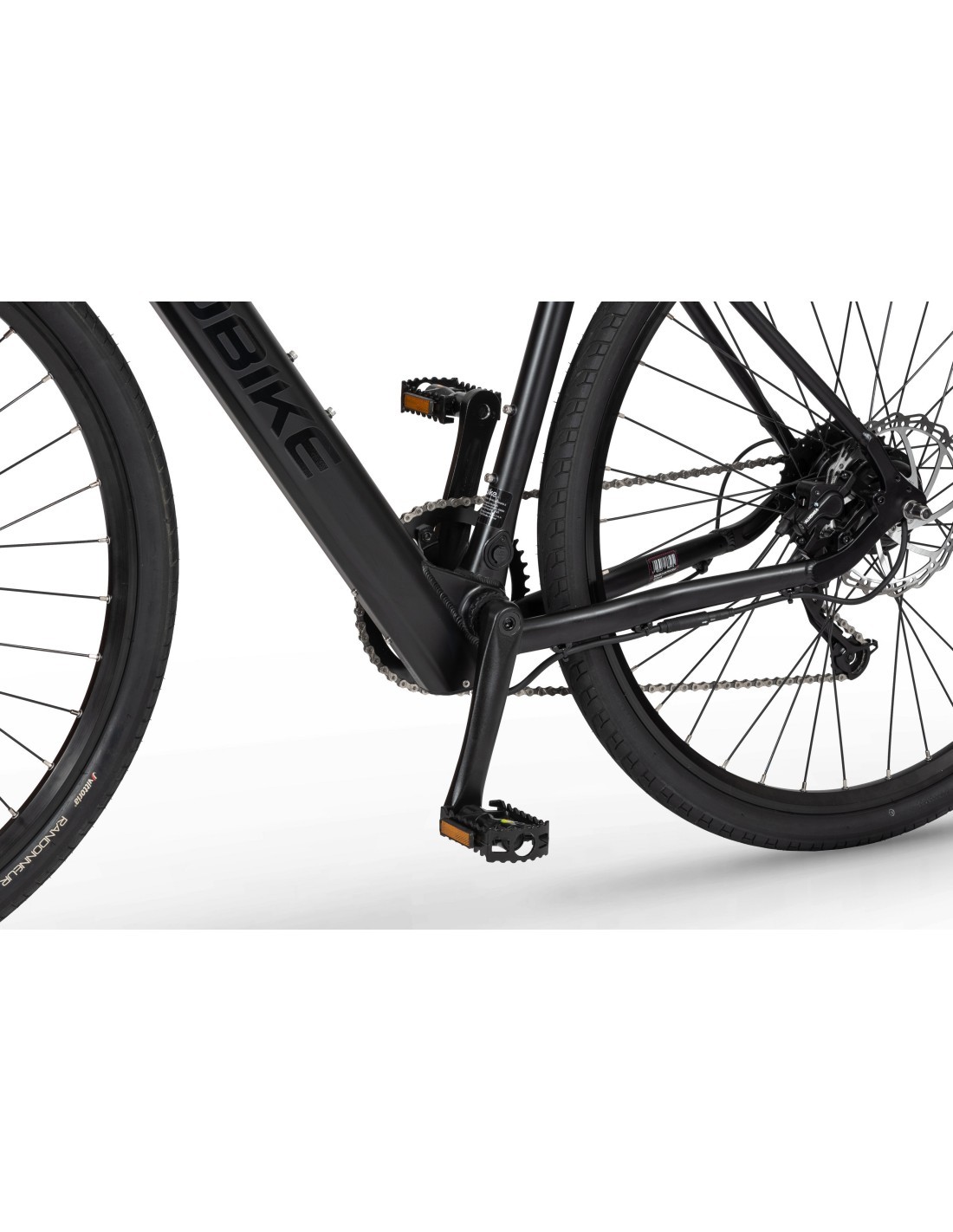

• Front chainring: Prowheel 44T, 1-speed
• Rear derailleur: Shimano ALIVIO SGS 9-speed
• Cassette: Shimano CS-HG200-9 9-speed 11-36T
• Handlebar: Zoom MTB-AL-E320BT, aluminium, clamp diameter (centre): 31.8 mm, length: 720 mm
• Stem: Zoom TDS-RD479, aluminium, fork outer diameter: 28.6 mm, reach: 70 mm
• Hubs: Front: KT KT-XA2F 13G 36H 9x100 mm / Rear: Integrated motor
• Pedals: Yes
• Rims: 28", reinforced, triple-wall
• Saddle: VELO VL-3381
• Seatpost: Zoom SP-C255, diameter: 27.2 mm, length: 300 mm
• Shifters: Shimano Altus 9-speed
• Spokes: Stainless steel
• Tyres: Vittoria City Randonneur (SNC) 47-622
• Weight: 18.7 kg
• Number of gears: 9
• Grips: VELO VLG-1889D2

Frame geometry

• Top tube length: 590 mm
• Head tube length: 120 mm
• Frame size: 490 mm
• Wheelbase: 1087.50 mm
• Seat tube angle: 74
• Head tube angle: 70.50
• Maximum bike load: 125 kg

• Battery capacity - measured in Wh (watt-hours) or Ah (amp-hours), it directly affects the maximum range on a full charge. Higher capacity means greater range.
• Range - the approximate distance in kilometres you can ride on a full charge. It depends on rider weight, battery capacity, weather, terrain (climbs/descents) and the selected level of pedal assistance. Note that battery capacity gradually decreases over the years - this is a normal chemical process of lithium-ion cell ageing. Improper use or modifications can reduce the maximum range.
• Bike weight - the total weight of all components, including the motor, battery, frame parts and accessories. Ecobike bikes offer an excellent power-to-weight ratio.
• Motor power - the nominal power the electric motor can generate. It does not exceed the power limits set for e-bikes in most countries.
• Maximum motor power - the highest possible power of the electric motor, achievable without the speed limiter; reaching it may require replacing some parts to match the correct voltage/current parameters. The user cannot simply select maximum power without certain modifications. Removing the speed limiter would require registering the vehicle as an electric moped and following the relevant traffic rules for mopeds. Unqualified modifications can damage the e-bike system; in such cases neither the manufacturer nor the seller is liable for any damage or injury.
• Battery life - the stated charge-cycle count is approximate and may be lower depending on how the battery is used, stored, etc.
• Maximum speed supported by the motor is 25 km/h. On reaching this limit the motor switches off and turns on again only when the speed drops. The motor works only while pedalling (pedal assist). The bike has no throttle. Assistance levels and other settings can be selected using the controller on the handlebar.
• Warranty - all EcoBike bikes come with a 2-year factory warranty on the frame and parts. The battery has a 1-year warranty. Other warranty terms are available on our website. For warranty questions, please contact Bikko.
