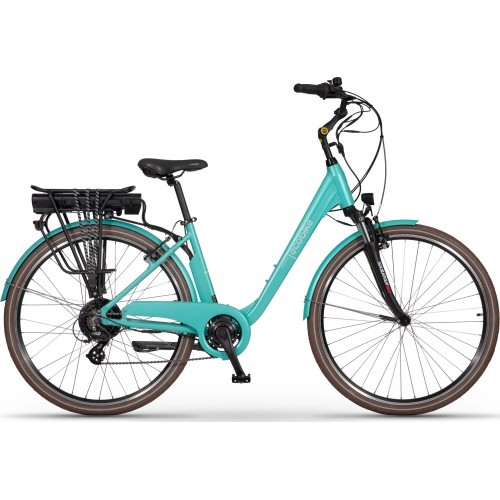

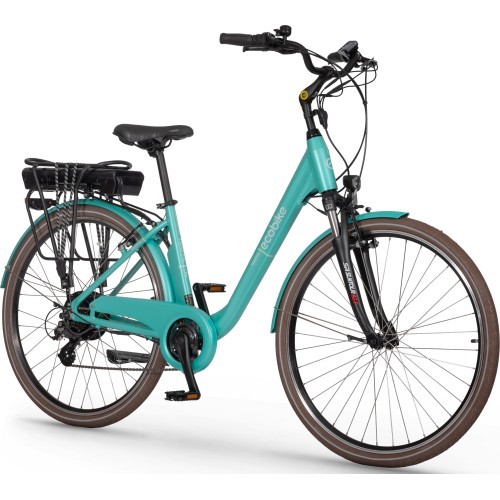

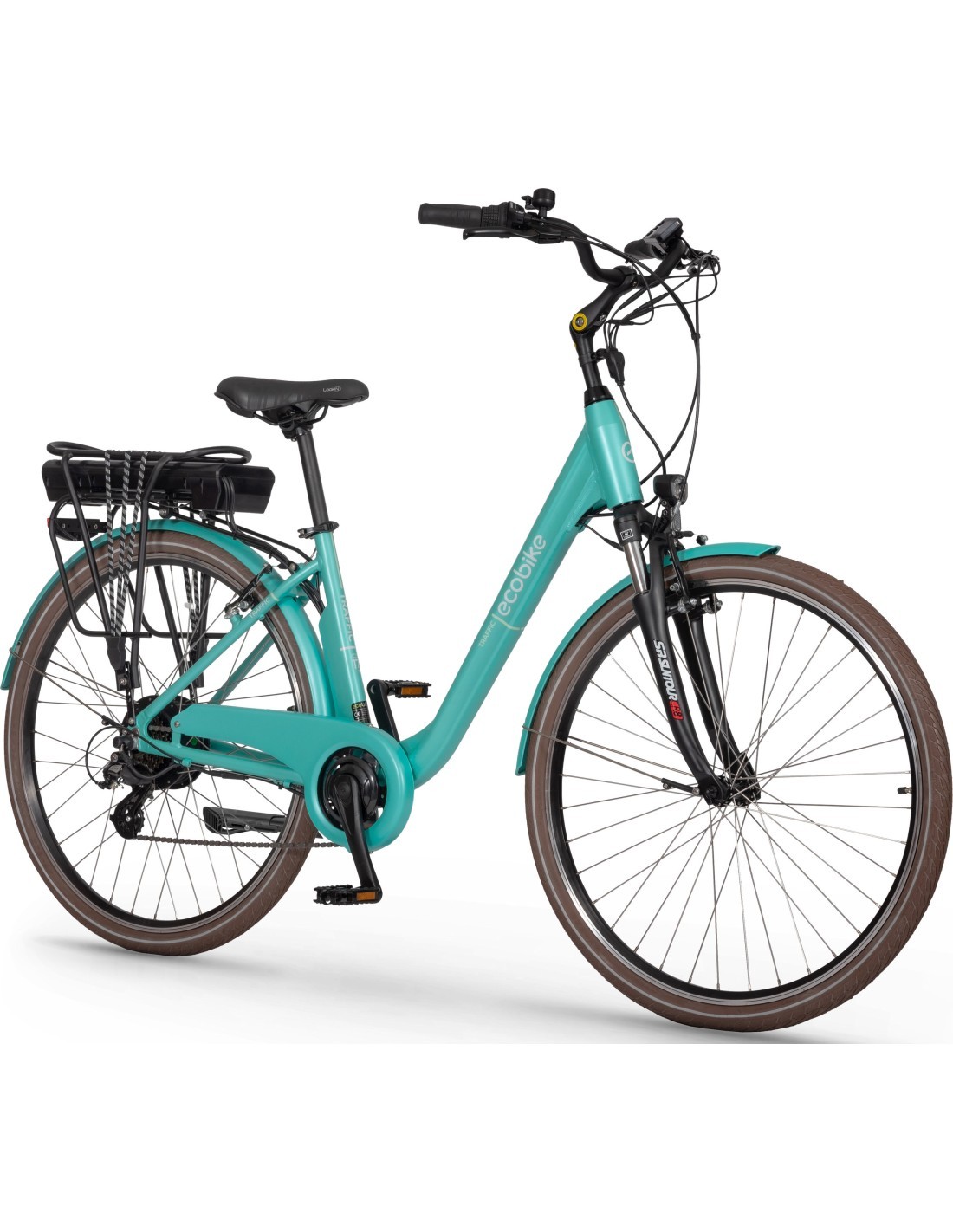

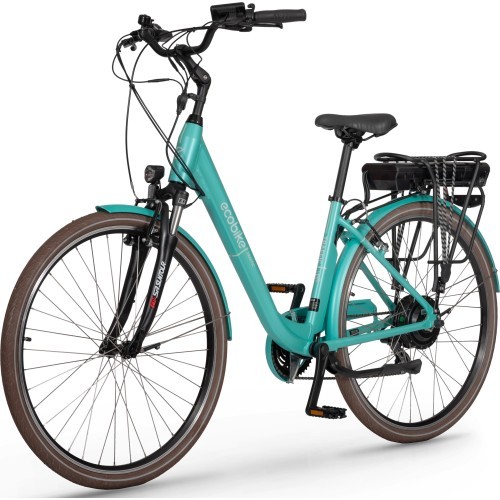

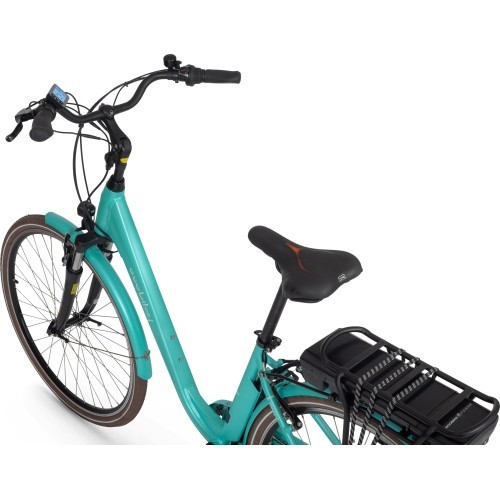

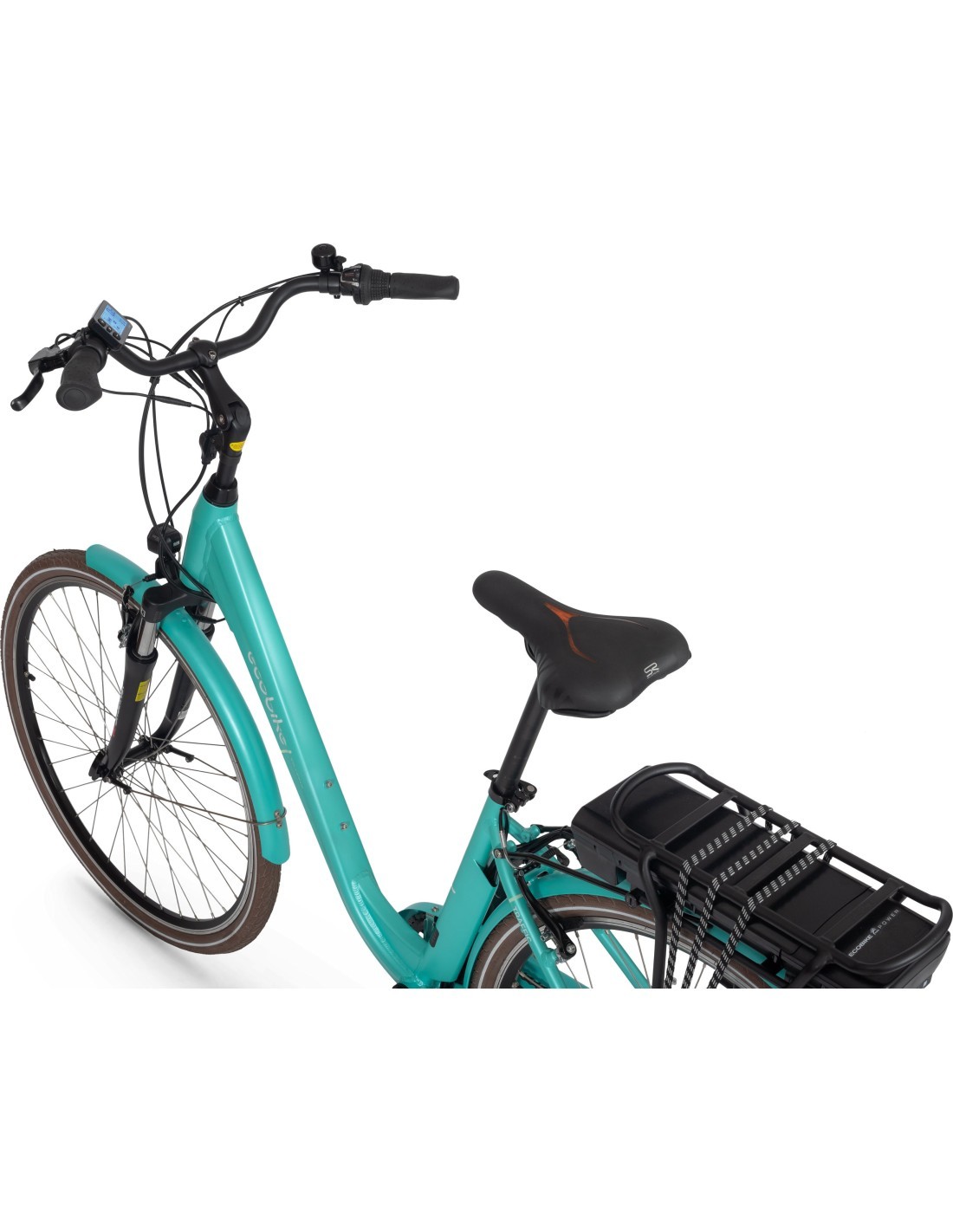

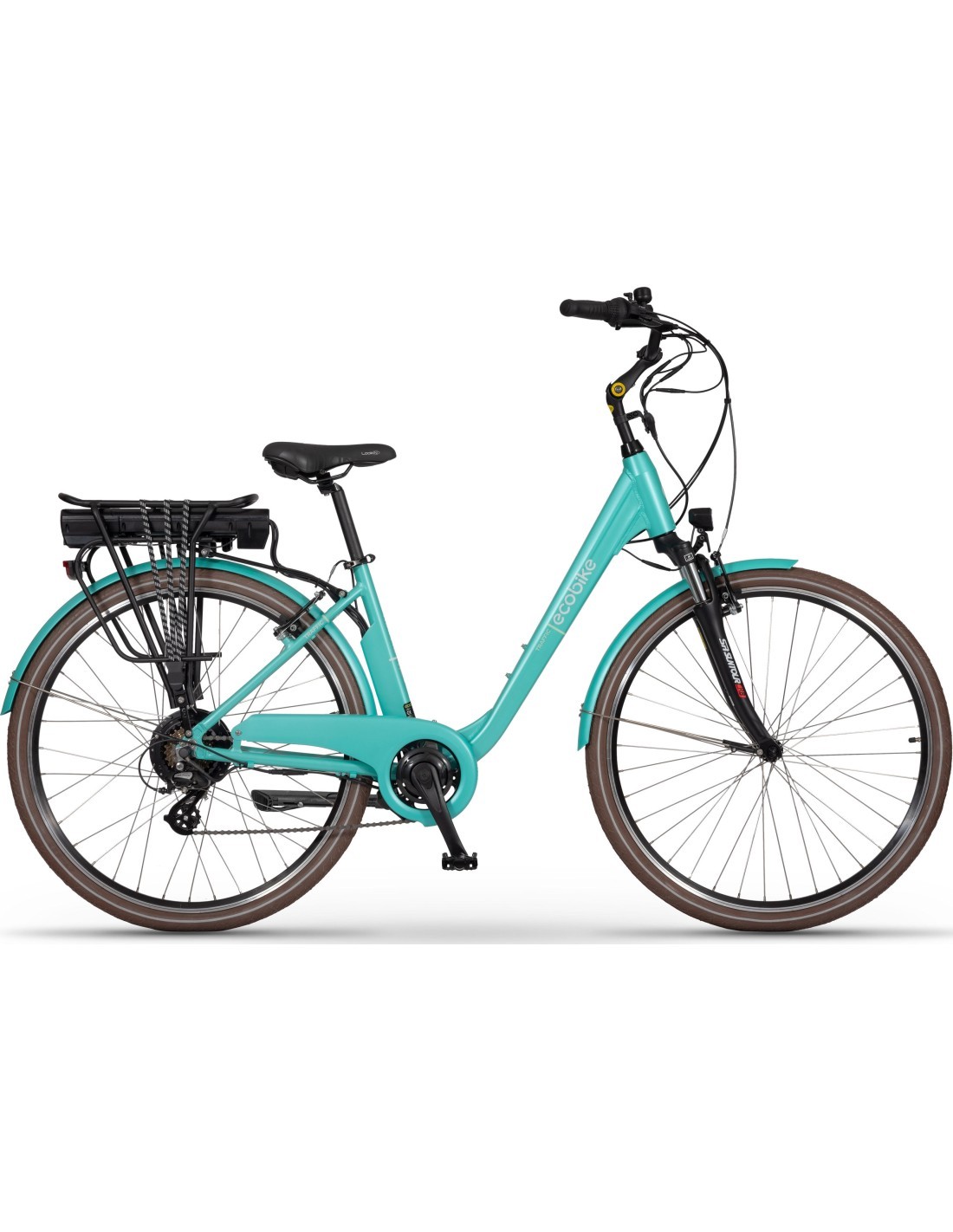

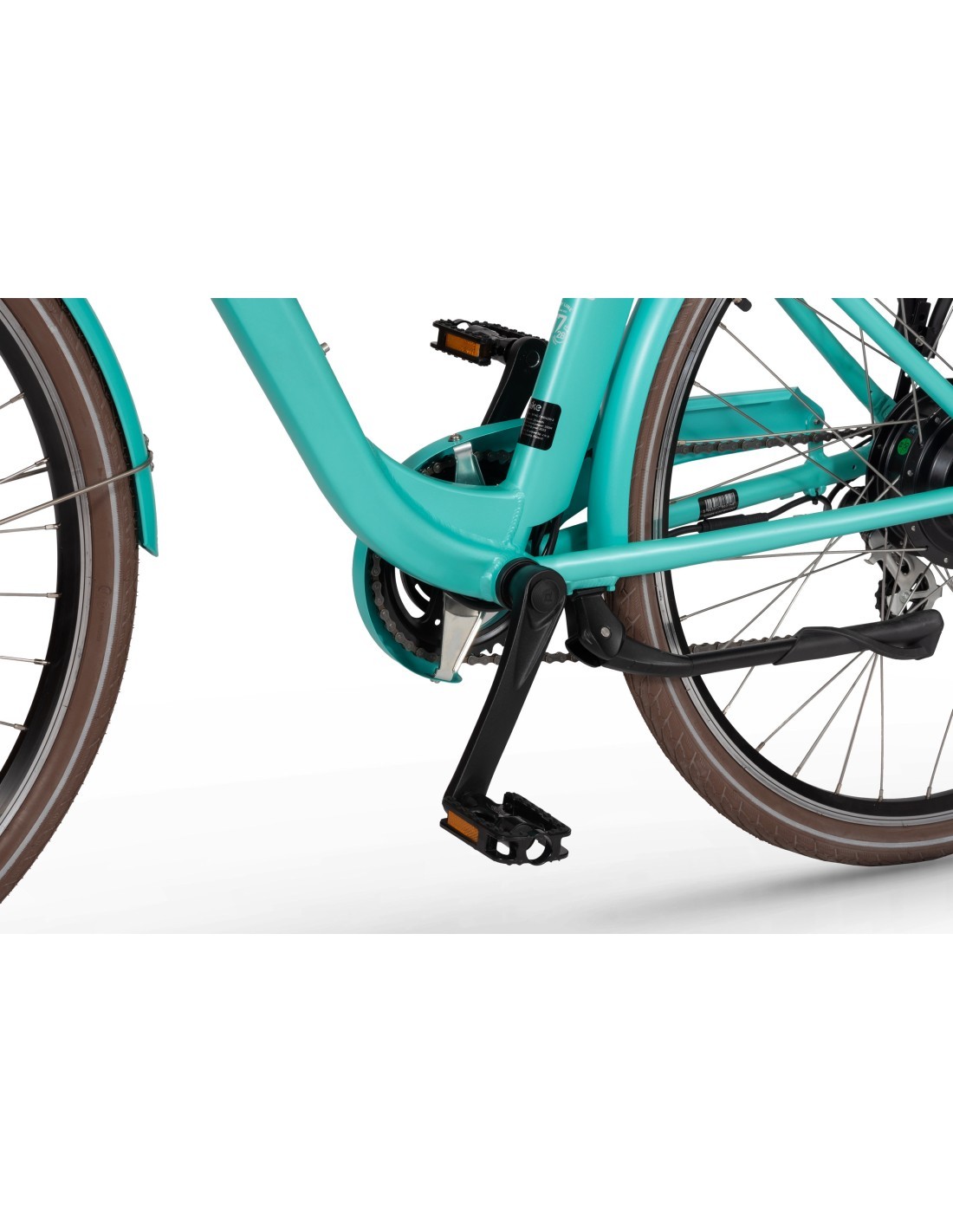

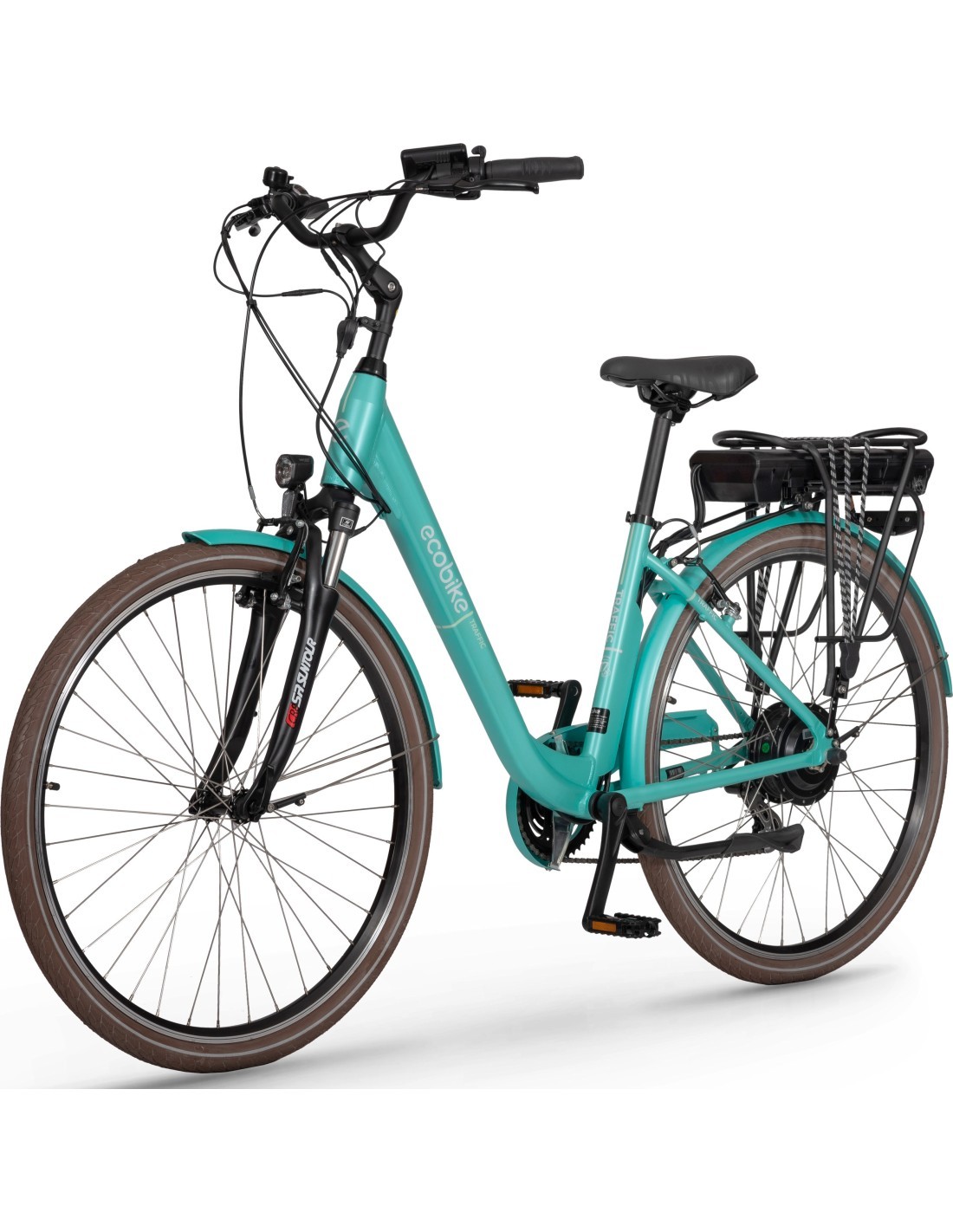

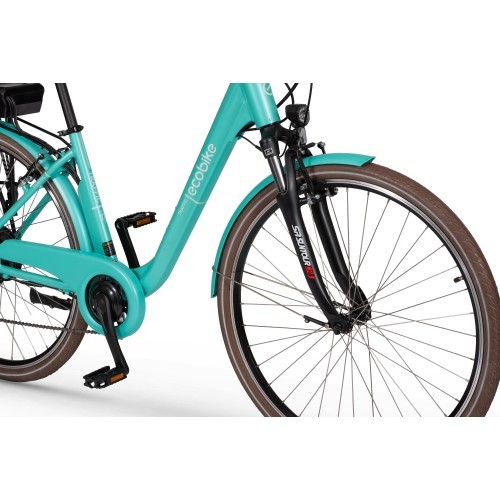

Ecobike Traffic 28 Mint 630Wh electric bike

Technical specifications

Range

Battery capacity and approximate range:

• 630 Wh: up to 140 km

Motor

• Voltage: 36 V

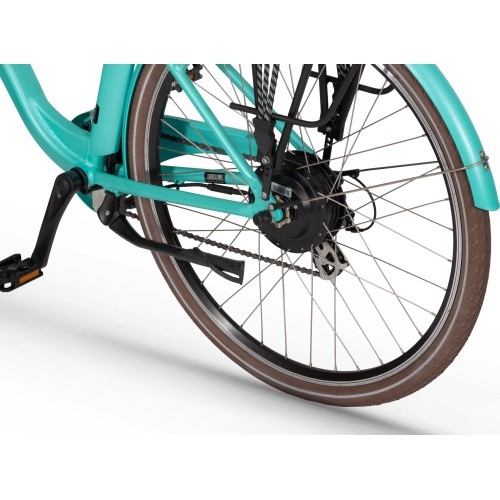

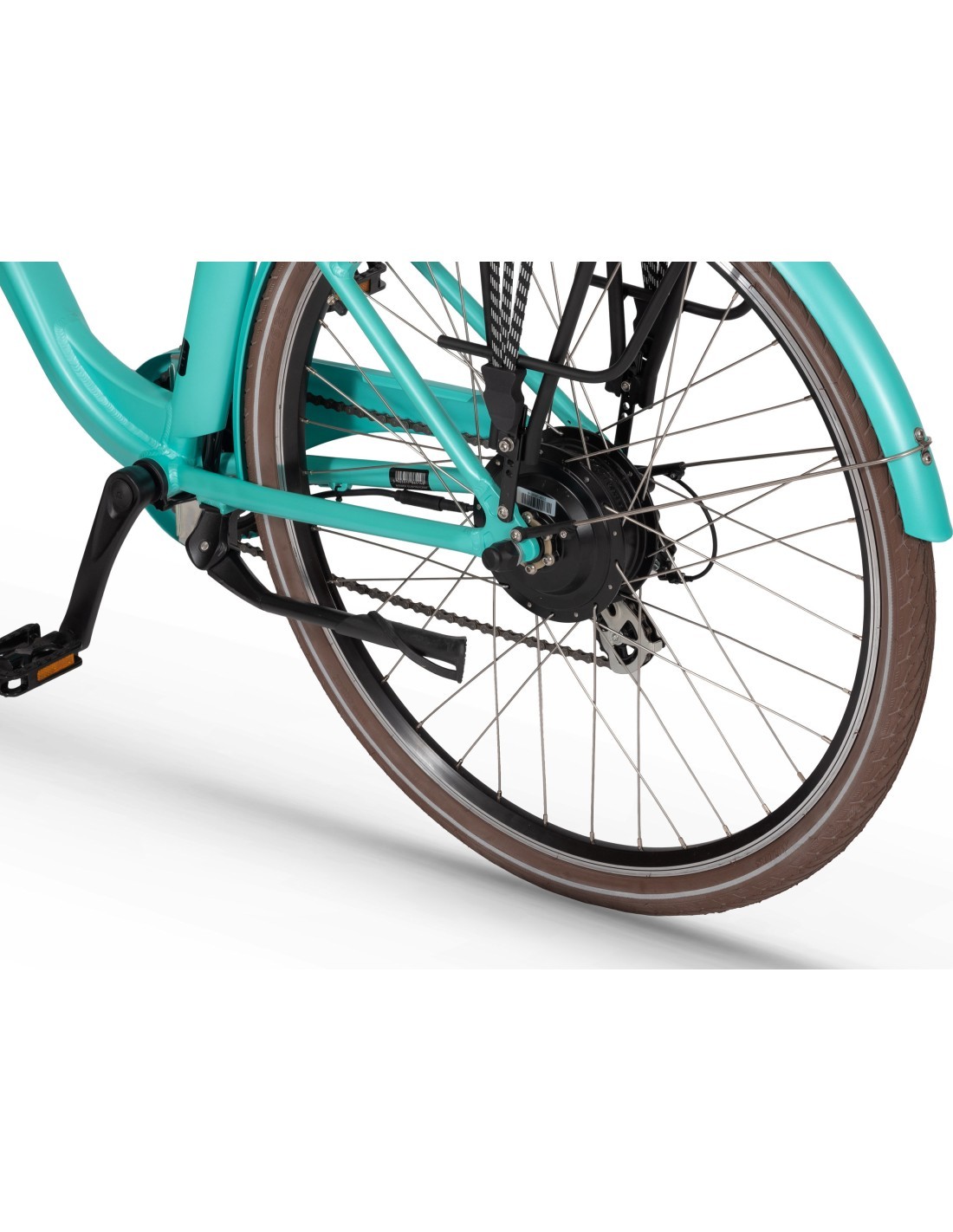

• Motor built into the rear wheel
• Maximum motor-assisted speed: 25 km/h per EU standard EN 15194
• Torque: 45 Nm
• Manufacturer: Bafang
• Power: 250 W

Battery

• Built into the frame (concealed)
• Battery life (approximate): 700 charge cycles
• Type: Li-ion
• Voltage: 36 V
• Charger: 220–240 W / 42V / 2A / D type
• Cell manufacturer: LG
• Smart BMS (Battery Management System)
• The battery can be charged while removed from the bike (convenient for charging at home)
• Battery charging time: 6–9 h

Components

• Frame: Aluminium, hydroformed tubes
• Frame sizes: 17"

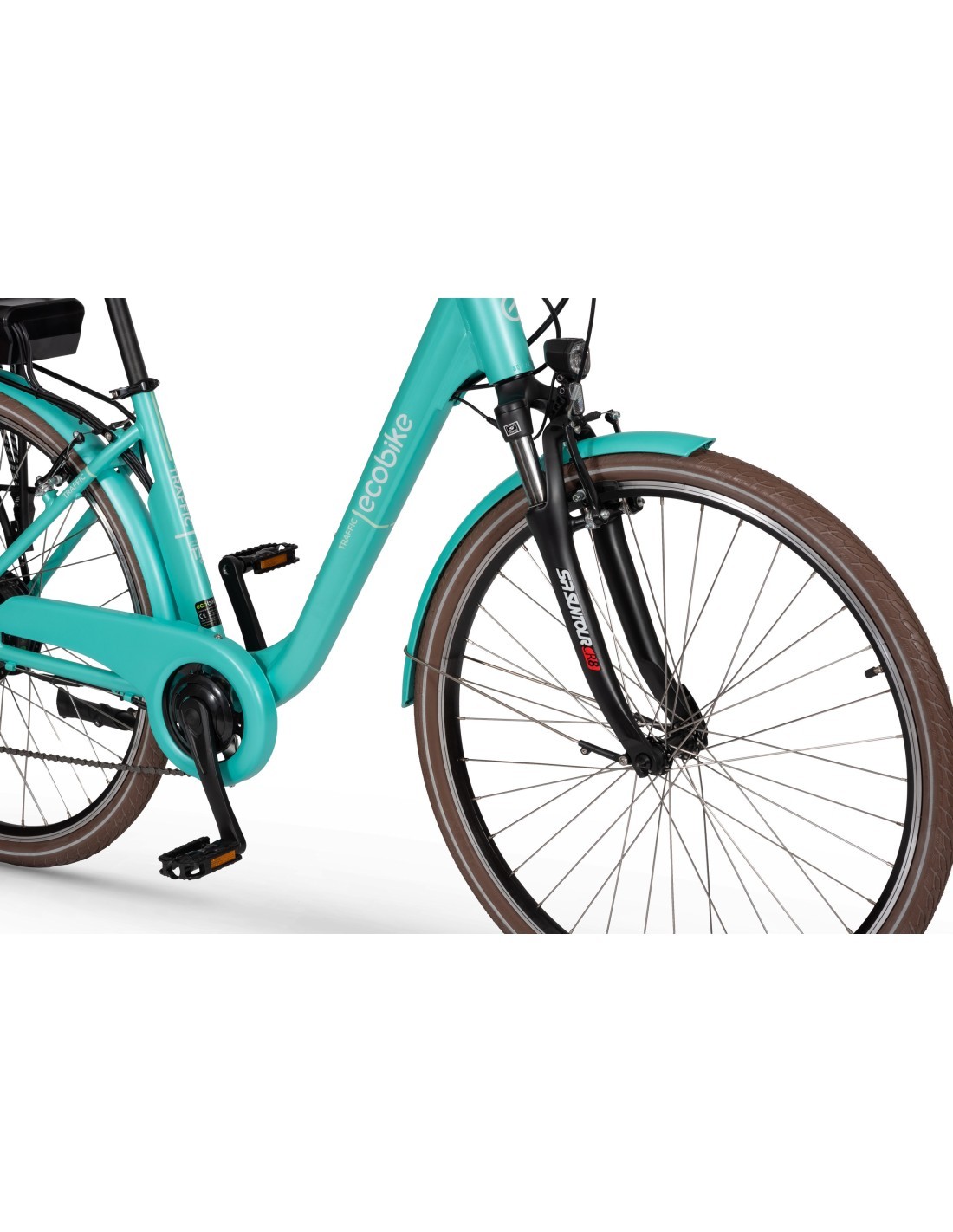

• Fork: SunTour SF14 CR8V P, travel 63 mm
• Brakes: Promax TX-117, V-brake
• Chain: KMC Z7 (114L)

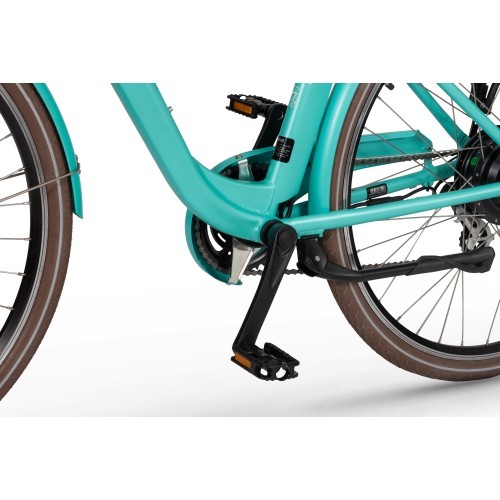

• Front chainset: Prowheel PRO A42 1-speed, 42T, crank length 170 mm
• Rear derailleur: Shimano Altus 7-speed
• Rear cassette: Shimano MF-TZ500, 14–28T, 7-speed
• Bottom bracket axle: Feimin FP-B902W, 68 x 124 mm

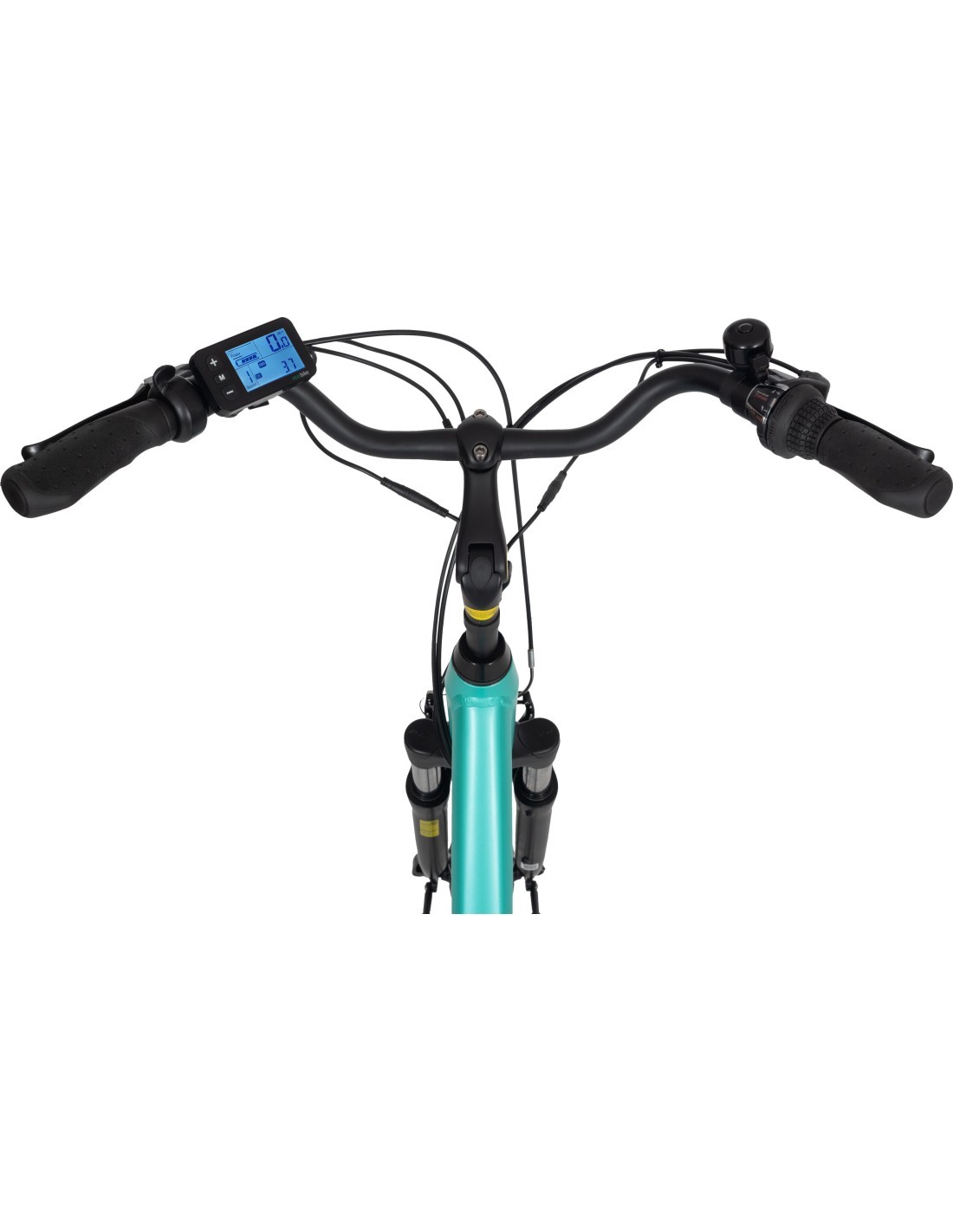

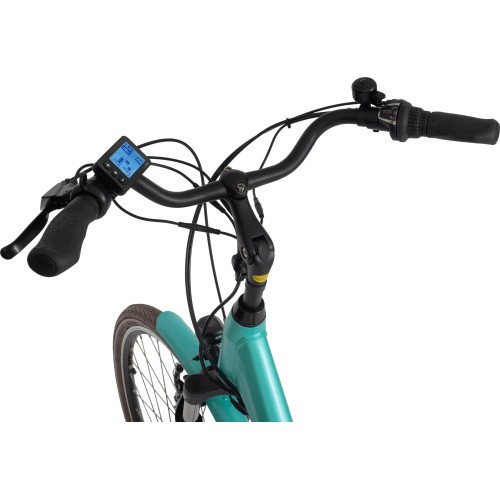

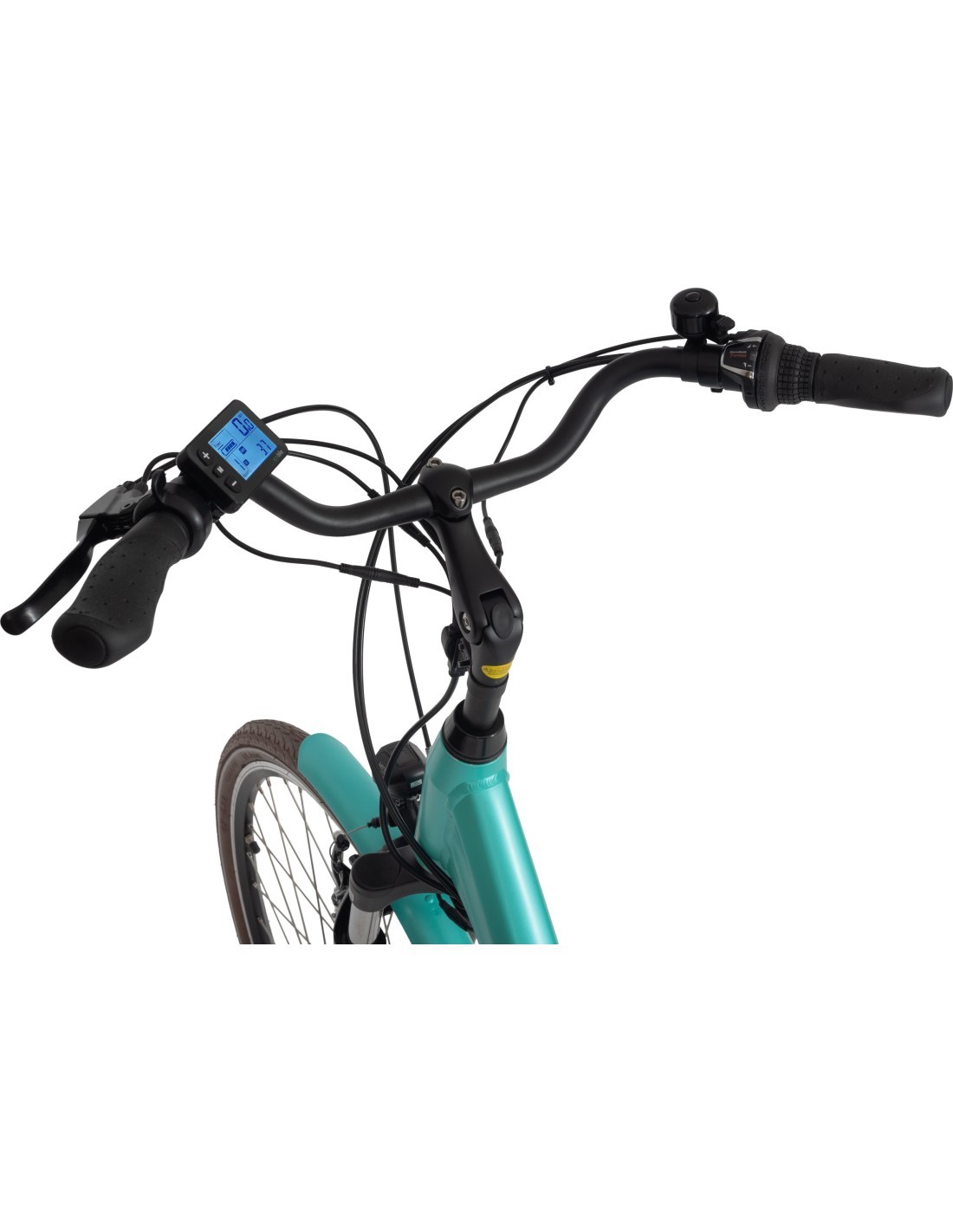

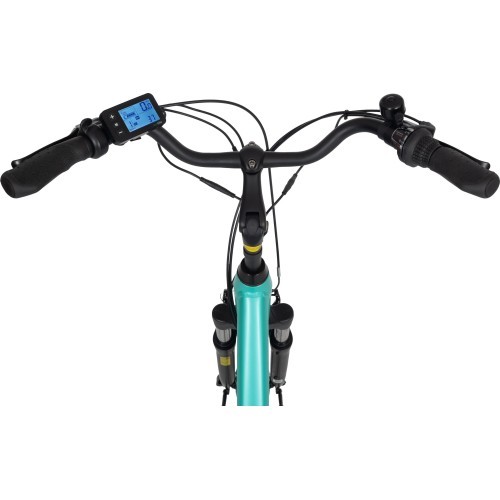

• Handlebar: Promax HB-T320, aluminium, with rise, bar ends angled 45° for a more comfortable riding position, clamp diameter (centre) 25.4 mm, length 600 mm
• Stem: Promax MQ-525, aluminium, adjustable
• Hubs: Front Joytech 751DSE / Rear integrated motor
• Pedals: Wellgo 9/16" LU-C33
• Rims: STARS 28" reinforced, triple-wall
• Saddle: Selle Royal Lookin Basic
• Shifters: Shimano Tourney Revo 7-speed
• Tires: 28'' x 1.75 Rubena Fash
• Weight: 24.1 kg
• Number of gears: 7
• Fenders: Front and rear set, with stays
• Grips: VELO VLG-519AD2, 22.2 x 135 mm / 22.2 x 92 mm

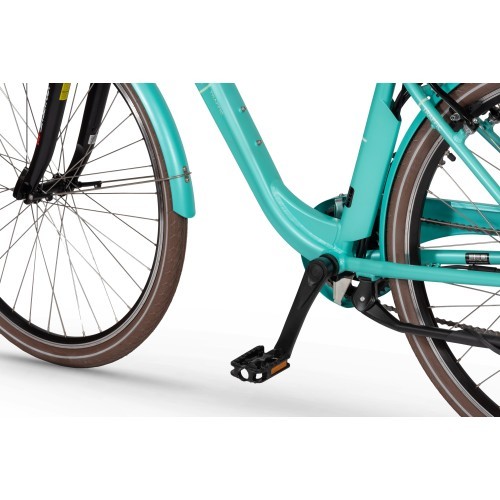

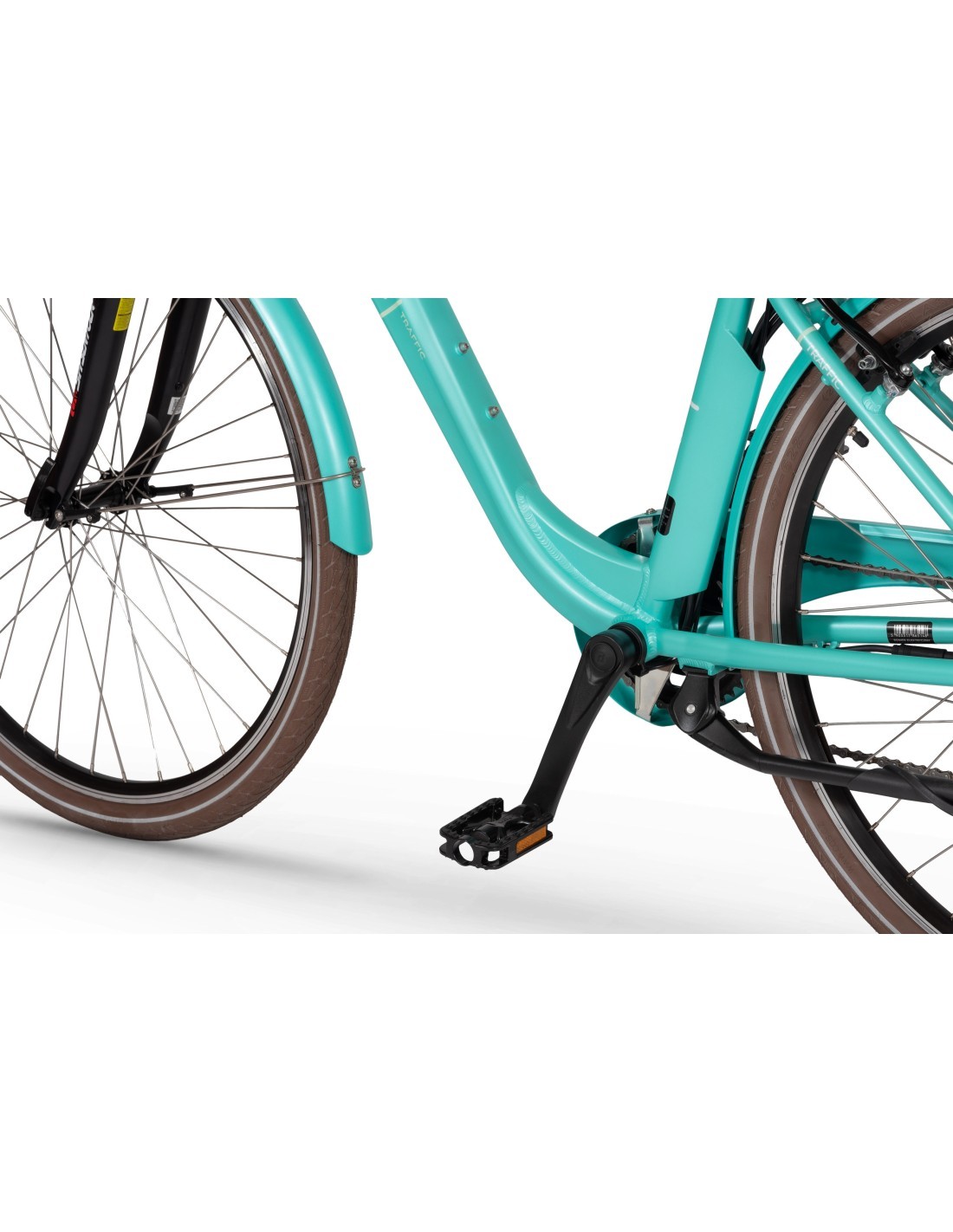

• Kickstand: Central, length-adjustable, aluminium
• Rack: Aluminium, max load 25 kg, with bungee straps
• Lighting: Rear light Spaninga RL1900 XE 36VDC, E-Bike version / Front light Spaninga Kendo XE 6–36V, E-Bike version

Frame geometry

• Top tube length: 600.30 mm
• Head tube length: 161 mm
• Frame size: 432 mm
• Wheelbase: 1105.70 mm
• Seat tube angle: 72.50°
• Head tube angle: 70°
• Maximum load: 125 kg

Notes

• Battery capacity – measured in Wh (watt-hours) or Ah (amp-hours) and directly affects the maximum range on a full charge. Higher capacity means greater range.
• Range – the approximate distance in kilometres you can ride on a full charge. It depends on rider weight, battery capacity, weather, terrain (climbs/descents) and the selected level of pedal assist. Note that battery capacity gradually decreases over the years; this is a normal chemical process of lithium-ion batteries (cell ageing). Improper use or modifications can reduce the maximum range.
• Bike weight – the total weight of all components, including the motor, battery, frame parts and accessories. Ecobike bikes offer an excellent power-to-weight ratio.
• Motor power – the nominal power the electric motor can produce. The power does not exceed the requirements set for electric bikes in most countries.
• Maximum motor power – the highest power the electric motor can reach without a speed limiter; achieving it may require replacing some parts to match the correct voltage/current parameters. The user cannot simply select maximum power without certain modifications. Removing the speed limiter requires registering the vehicle as an electric moped and following the relevant road traffic rules for mopeds. Unqualified modifications can damage the e-bike system. In the event of modifications, neither the manufacturer nor the seller is liable for any damage or injury.
• Battery service life – the stated charge cycle is approximate and may be lower depending on how the battery is used, stored, etc.
• Maximum speed the motor supports is 25 km/h. Once this limit is reached the motor switches off and re-engages only when the speed drops. The motor works only while pedalling (pedal assist). The bike has no throttle. Assist levels and other settings are selected via the controller on the handlebar.
• Warranty – all EcoBike bikes have a 2-year factory warranty on the frame and parts. The battery has a 1-year warranty. Other warranty terms are available on our website. For warranty questions, please contact Bikko.
