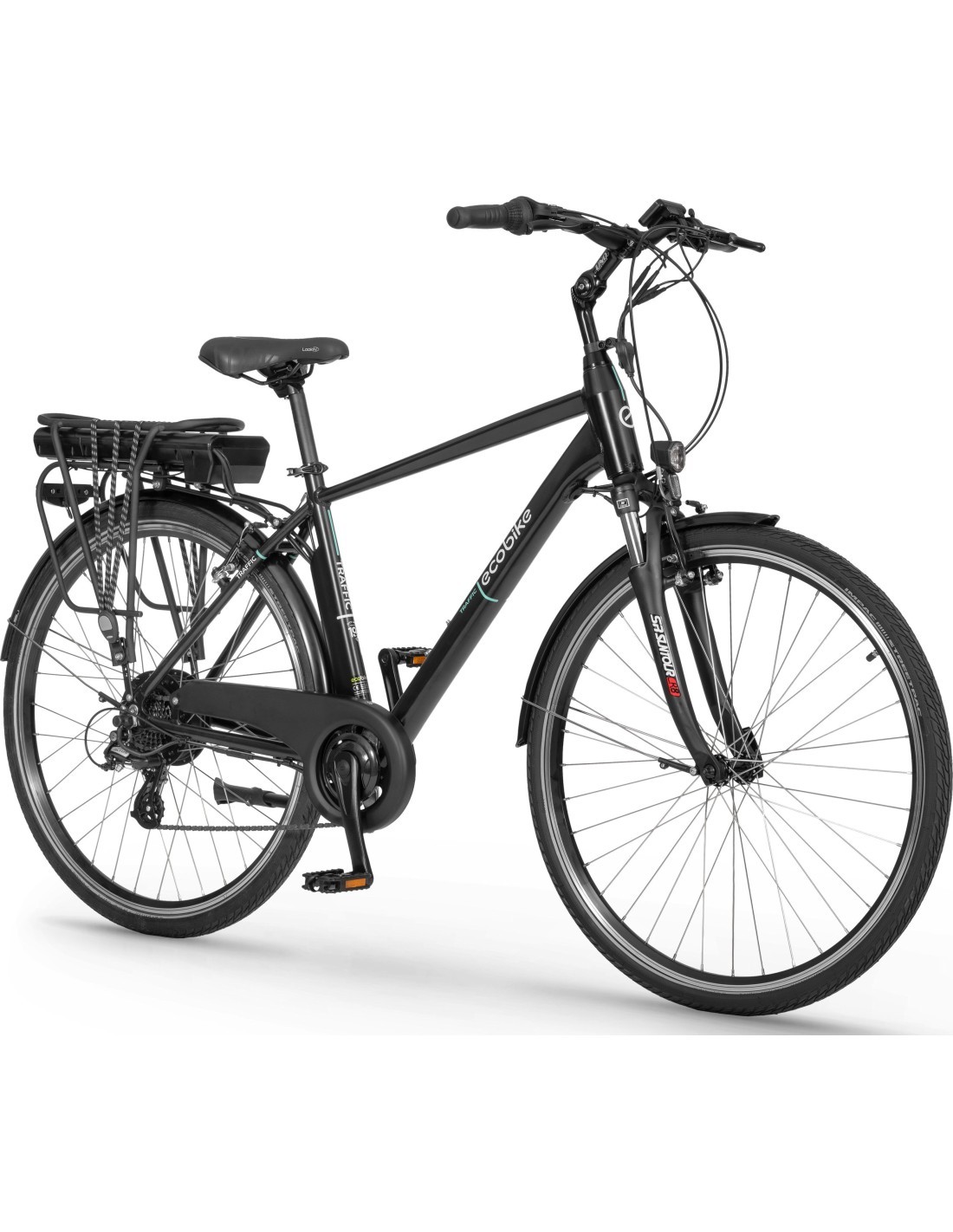

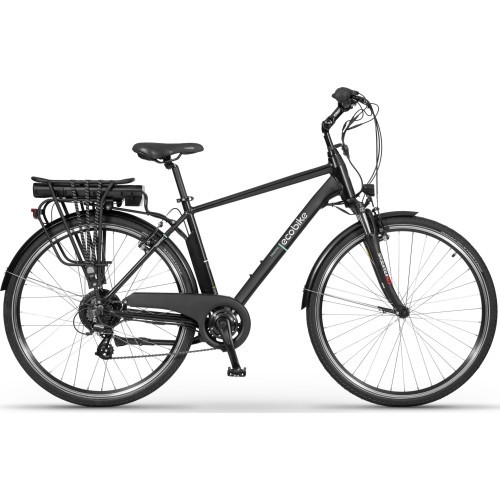

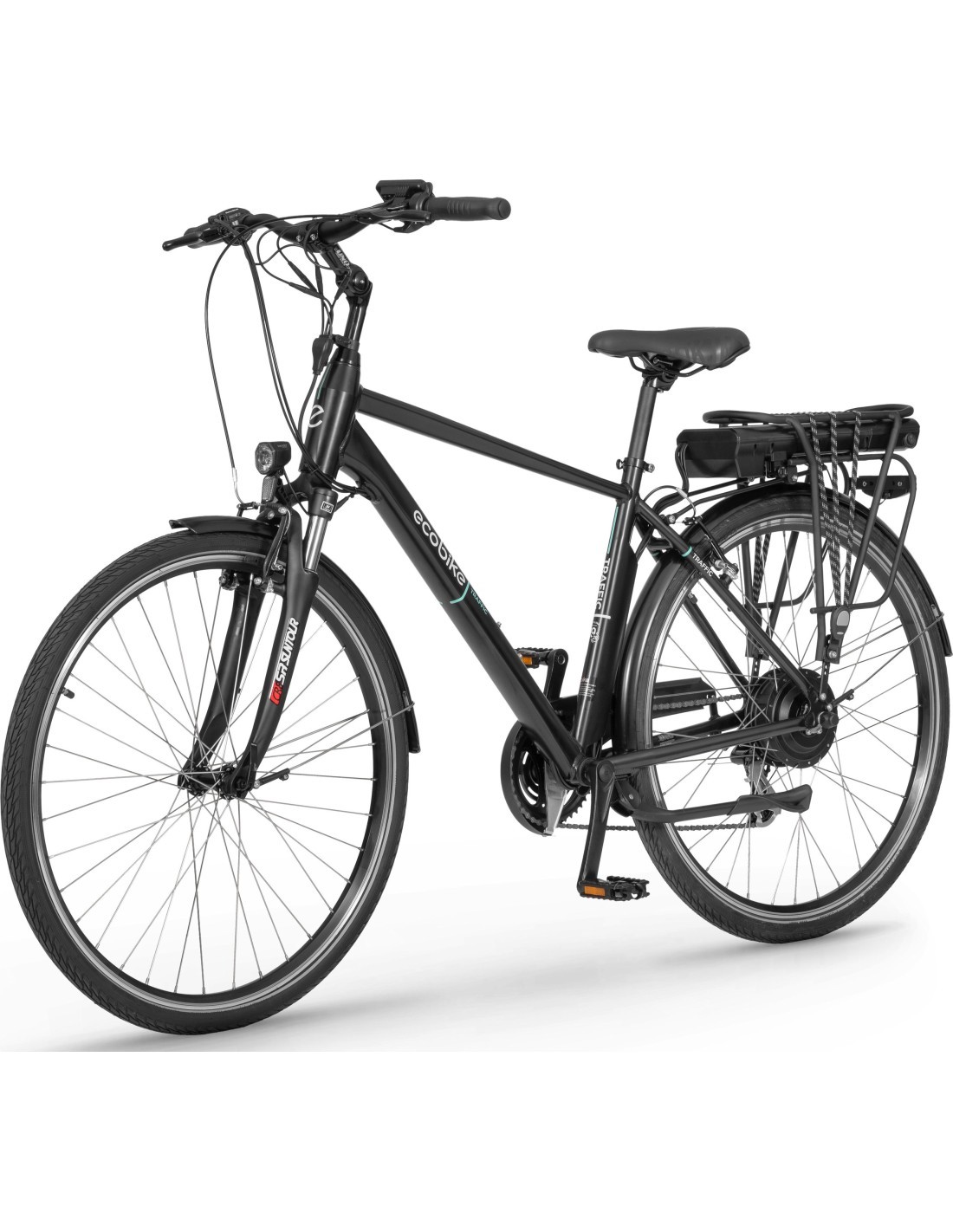

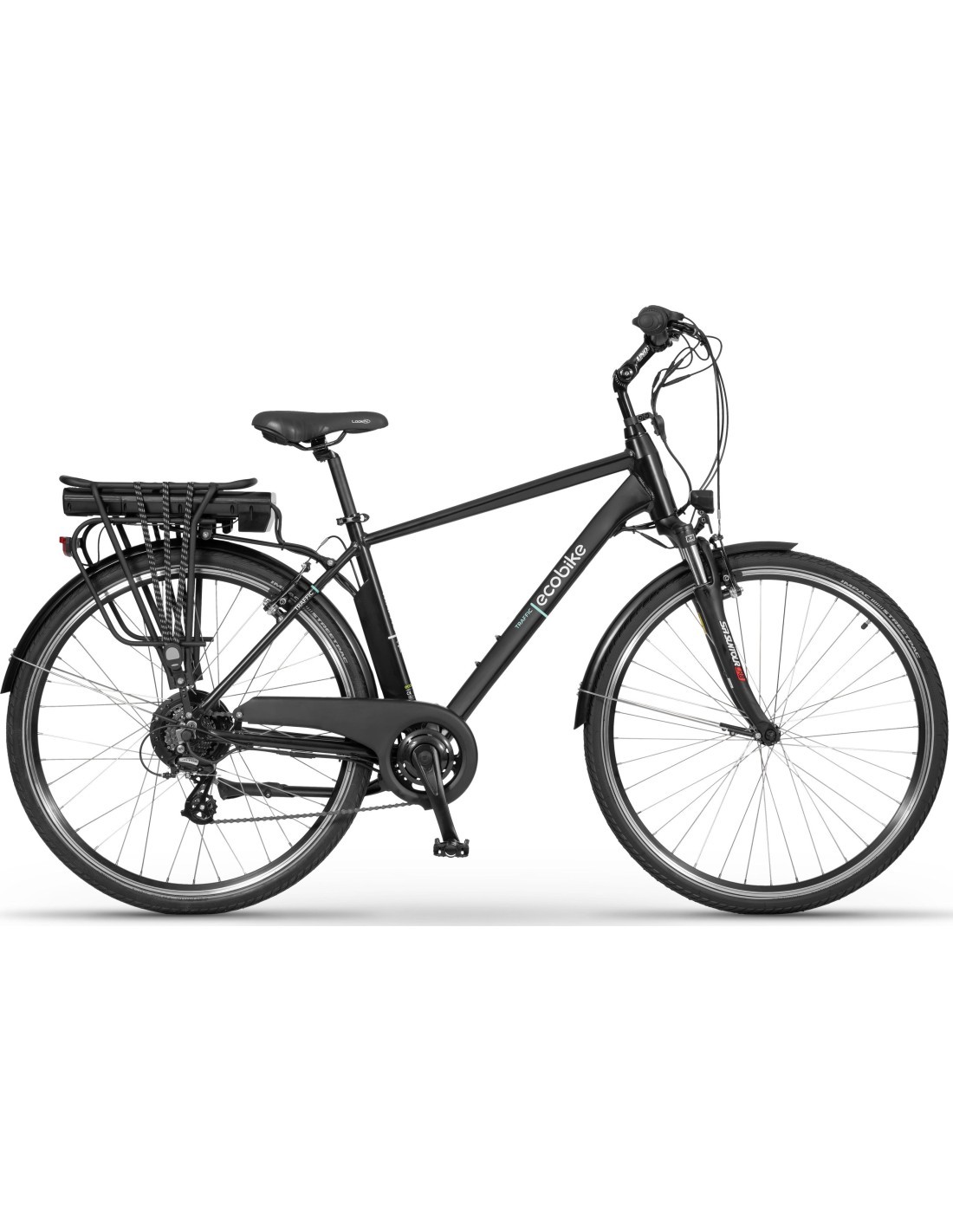

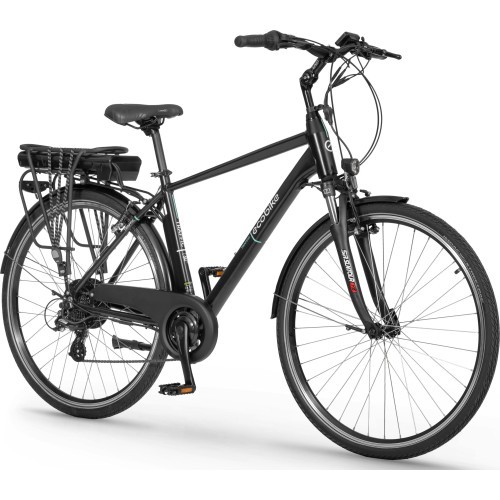

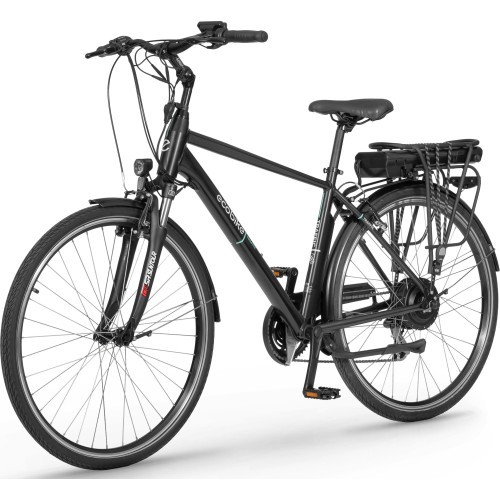

Ecobike Traffic 28 M Black 468Wh Electric Bike

Ecobike is one of the first e-bike manufacturers in Europe. This means the company has many years of experience in electric bike manufacturing and can offer an ideal price-to-quality ratio. World-class components are assembled carefully and with a love of bicycles in Poland. These advantages have earned trust across the entire European continent.

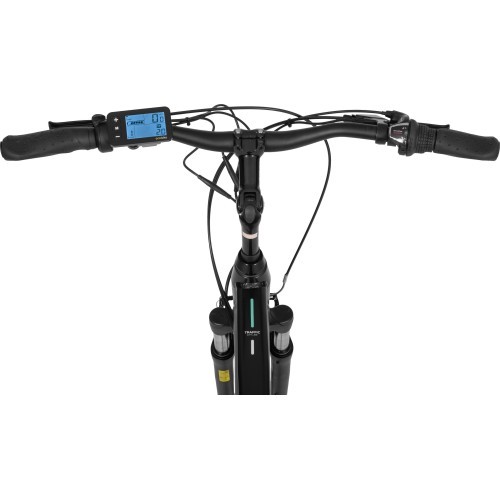

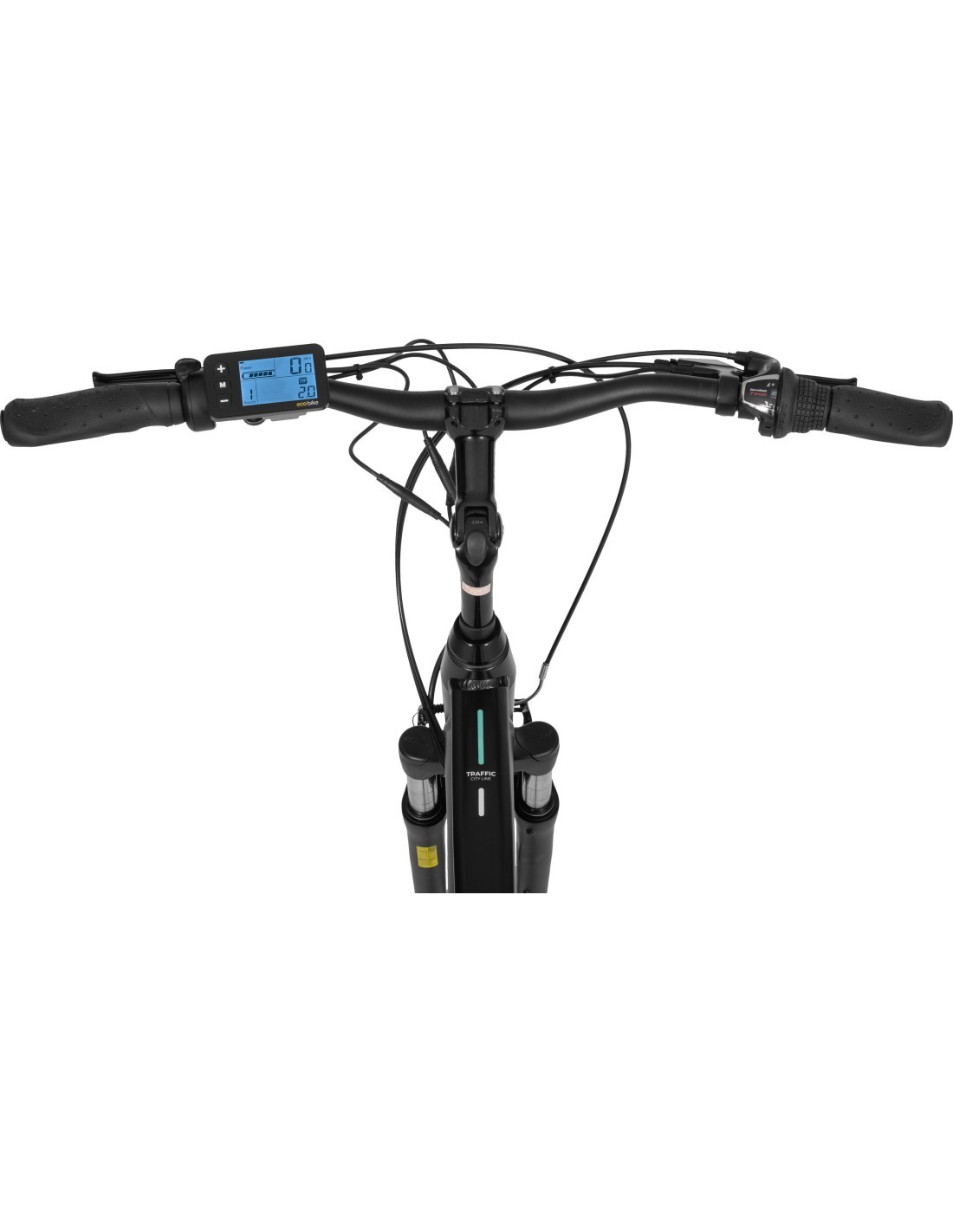

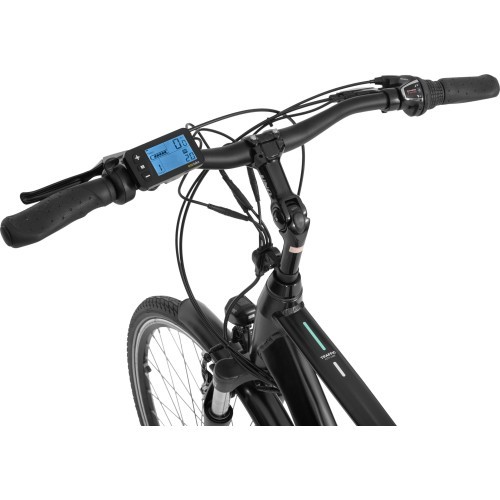

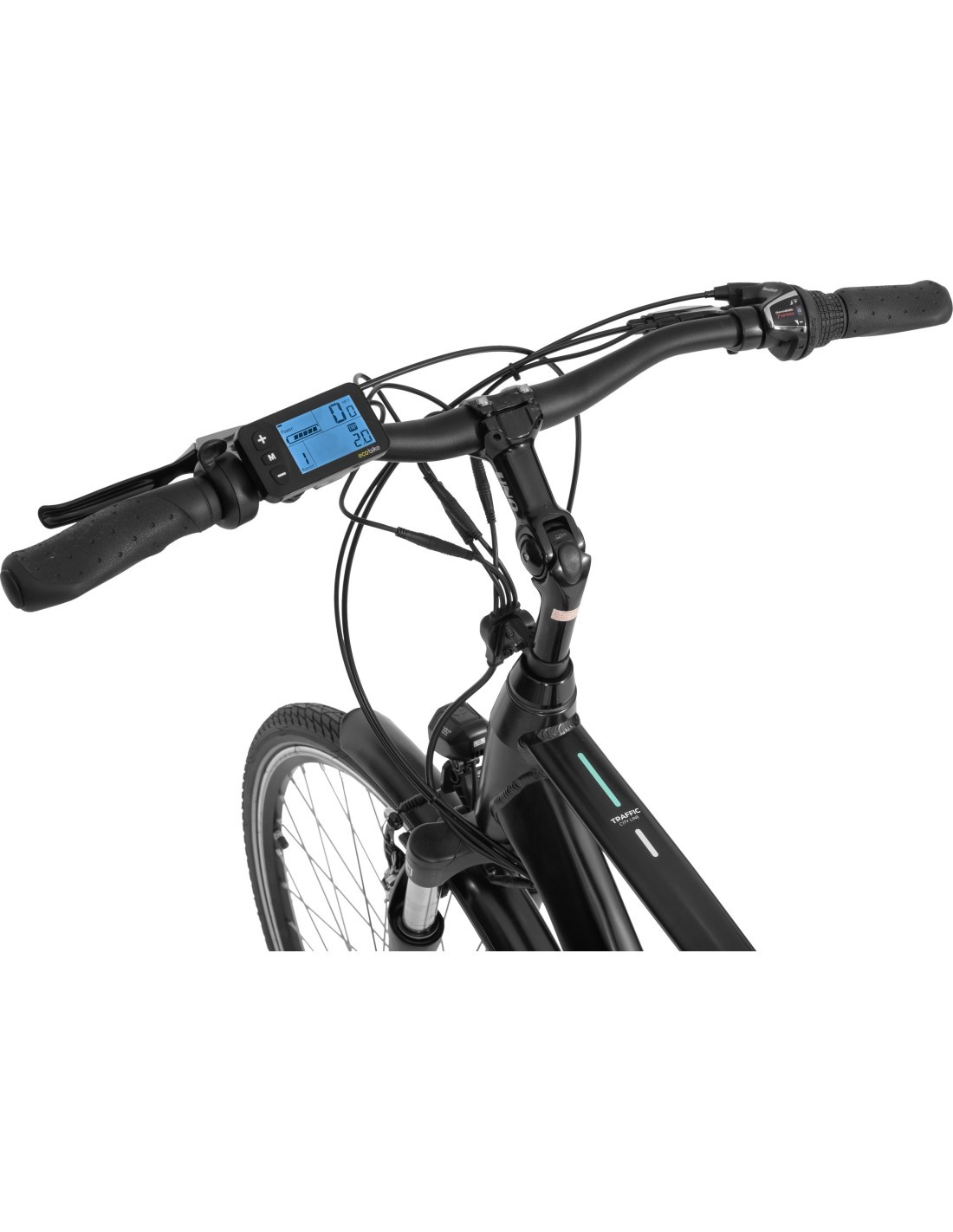

Traffic is a version equipped with an LCD screen for more demanding users, offering a much wider range of electric assistance settings and a lot of useful information. It also has a USB port for charging a smartphone or other devices.

Above all, this model has been completely redesigned. In low-frame versions this improves the comfort of getting on and off the bike. The men's variant is also new and gives the rider a distinctive style on city bike paths.

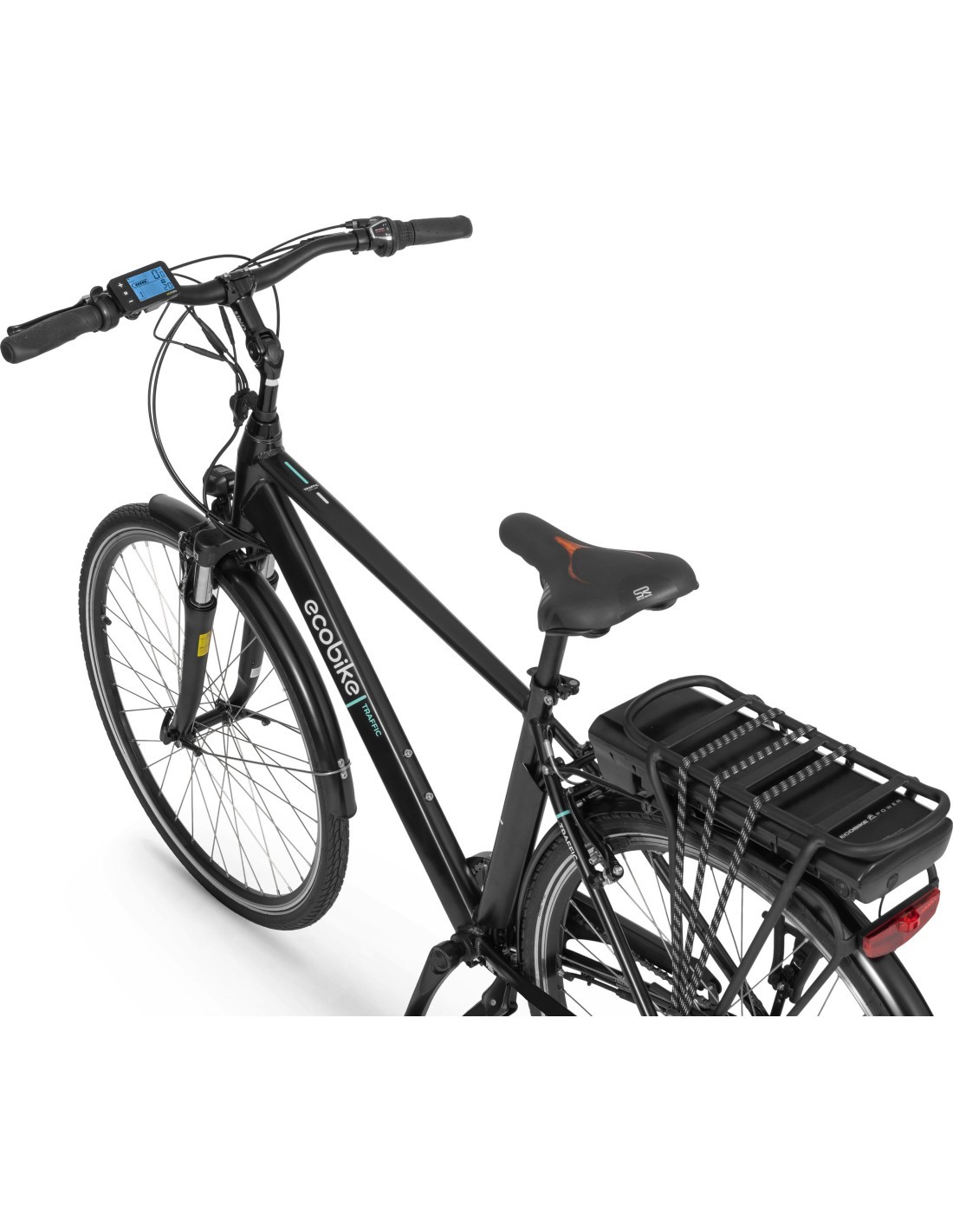

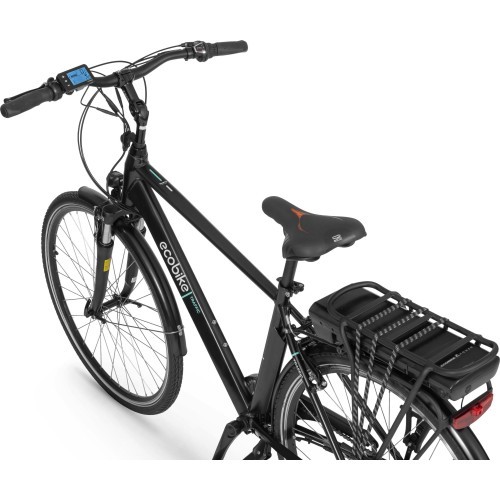

The bike is powered by the BAFANG 250 W unit we have used for years, located in the rear hub and supported by a rack-mounted battery. Notably, the batteries use the new Smart BMS technology, which gives them even better performance and longer trouble-free operation.

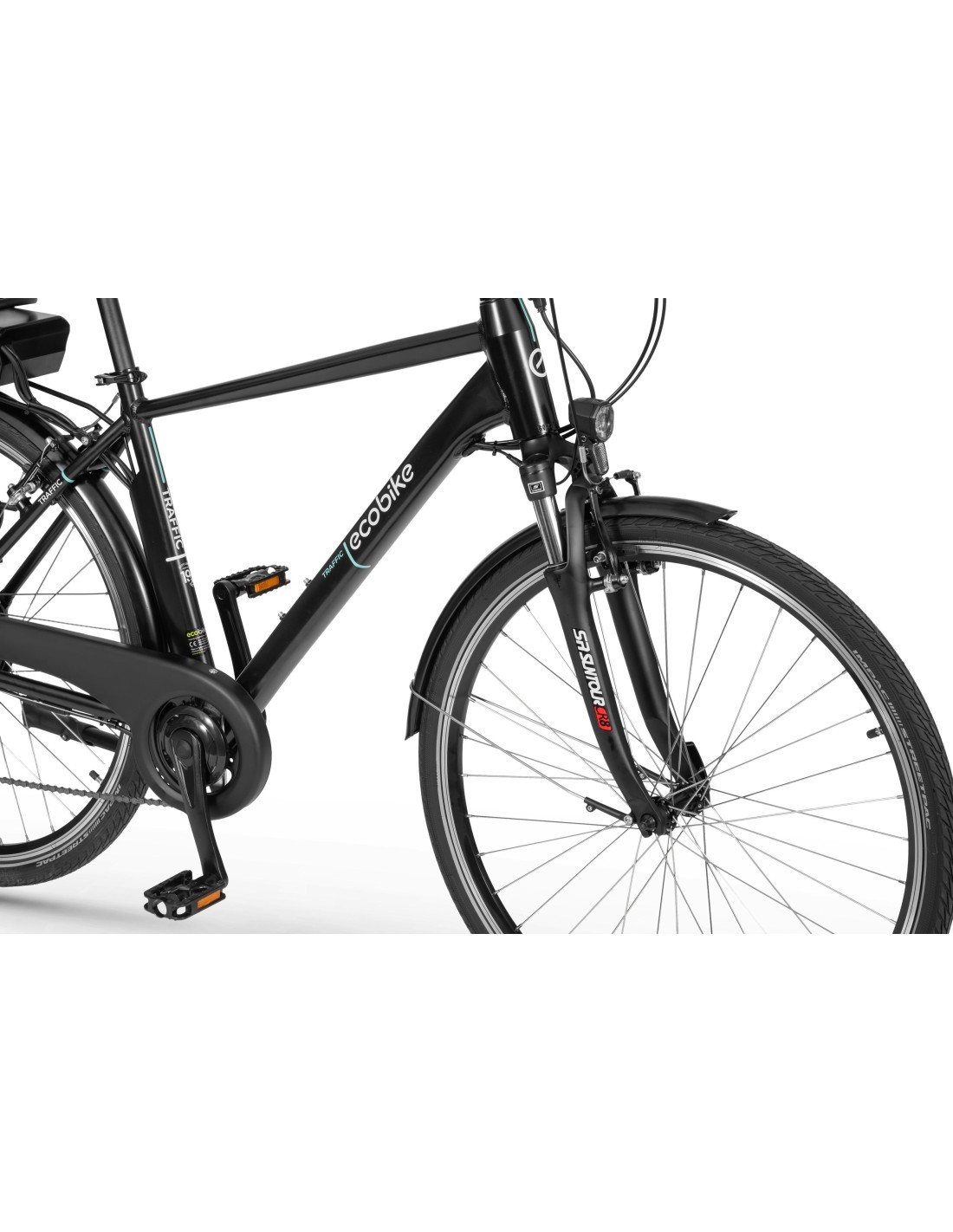

The bike also meets expectations for comfort and safety. Traffic comes with full lighting powered by the main battery, Shimano Altus gears, a SunTour CR8V suspension fork, an adjustable stem, fenders, and a comfortable Selle Royal saddle.

Technical specifications

Range: battery capacity and approximate range:

• 468 Wh: up to 140 km

Motor:

• Voltage: 36 V

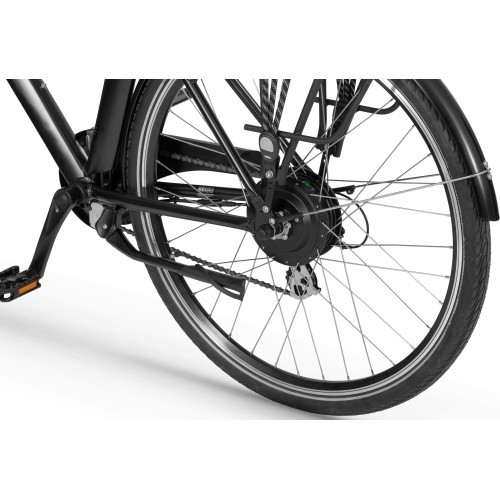

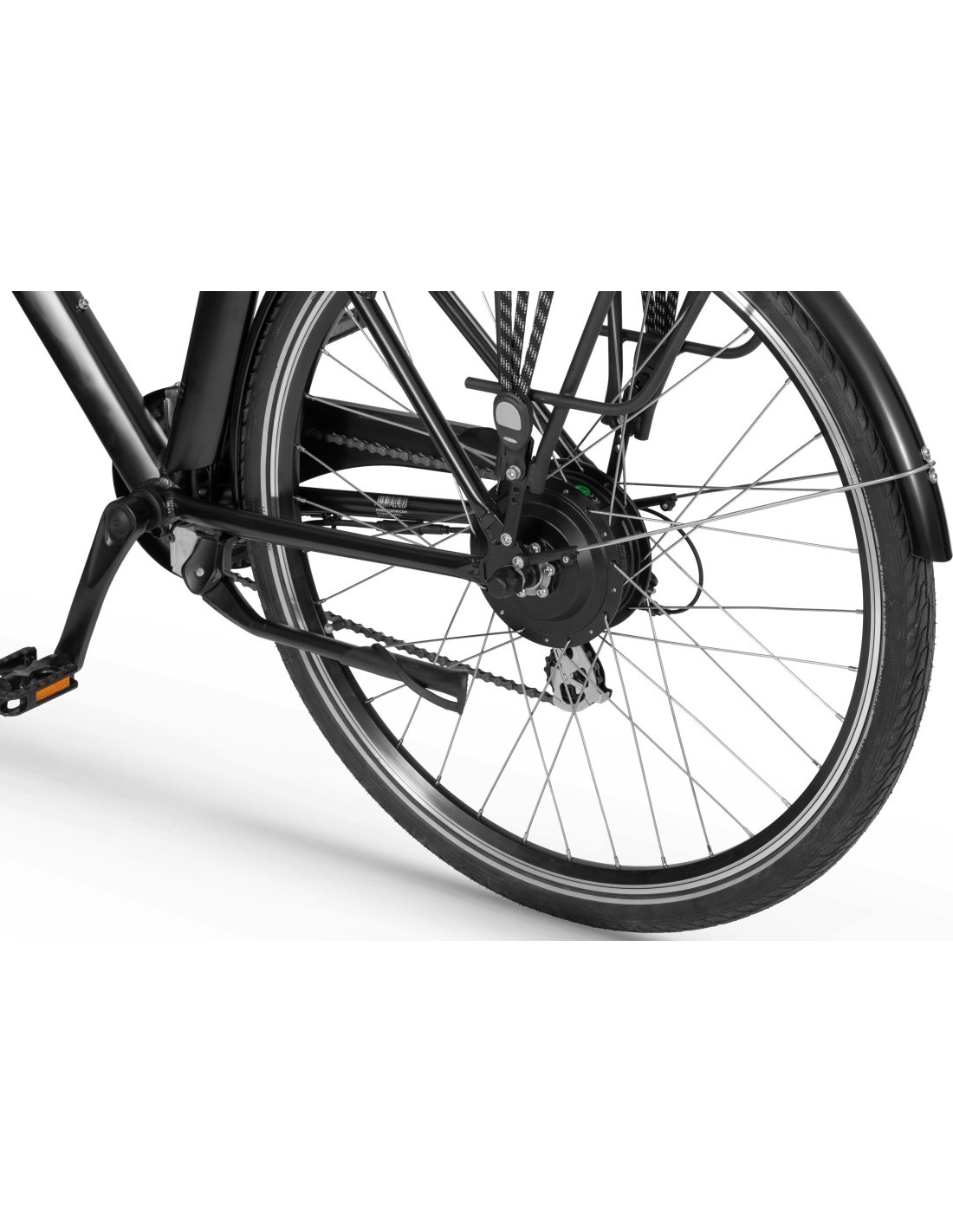

• Motor mounted in the rear wheel
• Maximum motor-assisted speed: 25 km/h per EU standard EN 15194
• Torque: 45 Nm
• Manufacturer: Bafang
• Power: 250 W

Battery:

• Mounted in the frame (hidden)
• Battery life (approx.): 700 charges
• Type: Li-ion
• Voltage: 36 V
• Charger: 220-240 W / 42V / 2A / D type
• Cell manufacturer: Greenwey
• Smart BMS (Battery Management System)
• The battery can be charged while removed from the bike (convenient for charging at home)
• Battery charging time: 4.5-9 h

Components:

• Frame: aluminium, hydroformed tubes
• Frame size: 19"

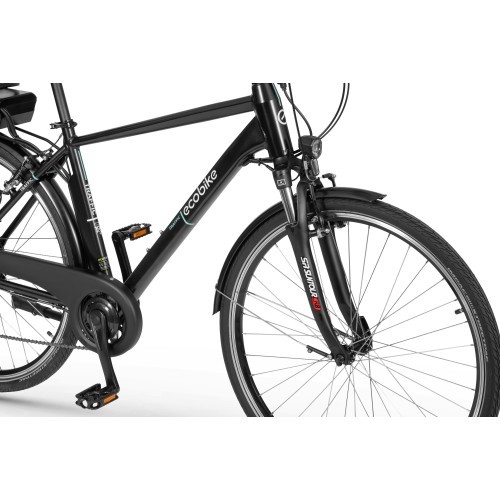

• Fork: SunTour SF14 CR8V P, travel 63 mm
• Brakes: Promax TX-117, V-brake
• Chain: KMC Z7 (114L)

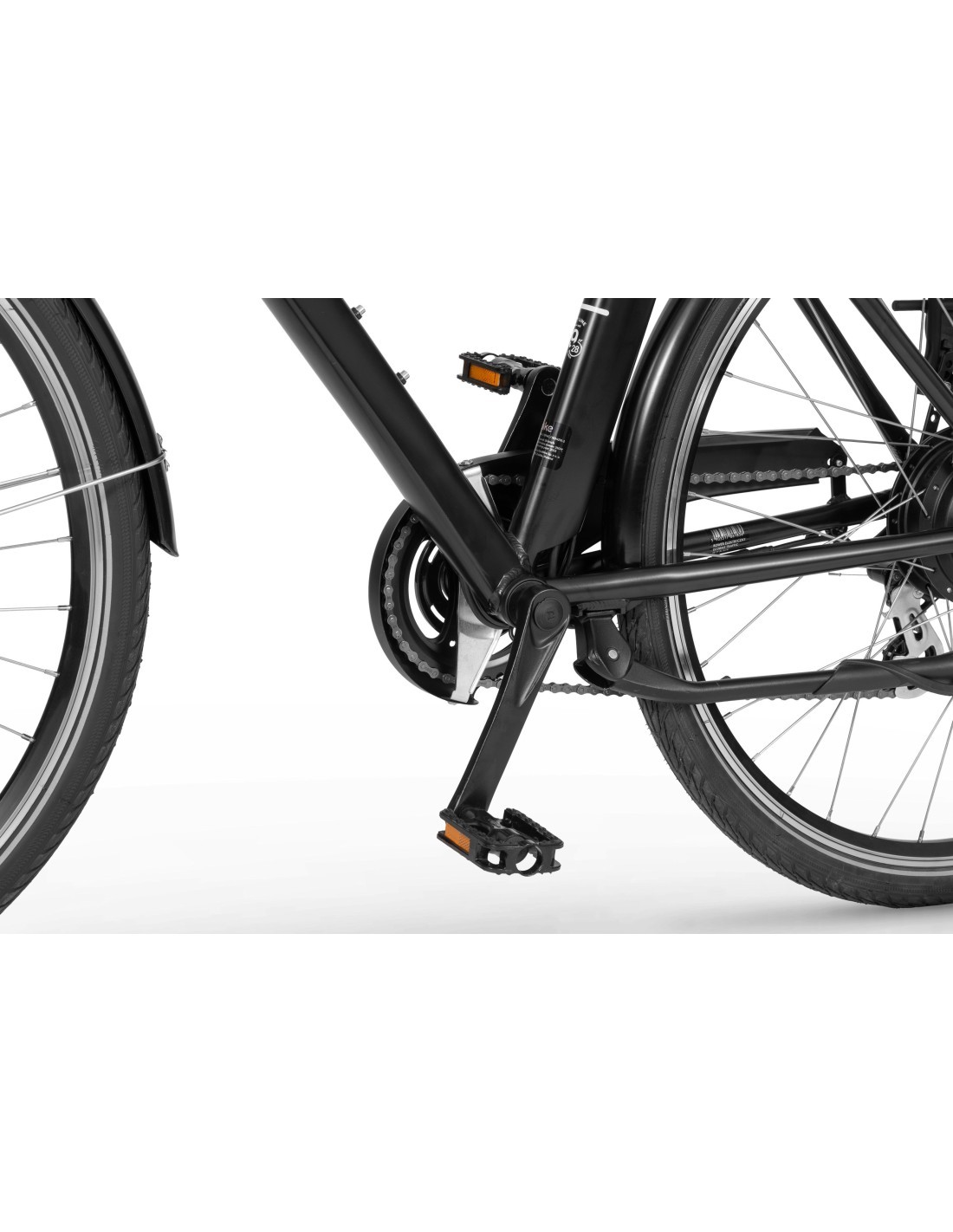

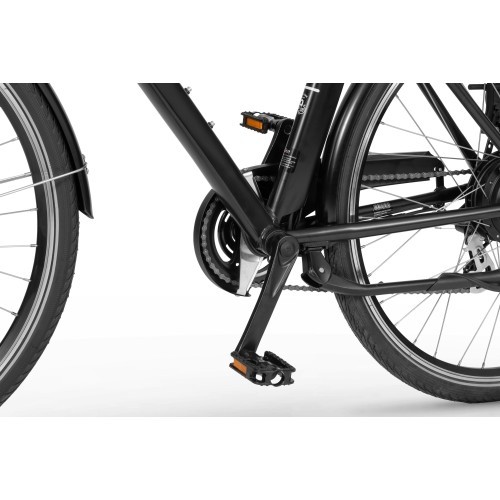

• Front chainring: Prowheel PRO A42 1-speed, 42T, crank length 170 mm
• Rear derailleur: Shimano Altus 7-speed
• Rear cassette: Shimano MF-TZ500, 14-28T, 7-speed
• Bottom bracket axle: Feimin FP-B902W, 68 x 124 mm
• Handlebar: Promax HB-T320, aluminium, with rise, ends turned at a 45° angle for more comfortable riding, clamp diameter (center): 25.4 mm, length: 600 mm
• Stem: PROMAX 85 mm, 31.8
• Hubs: front: Joytech 751DSE / rear: integrated motor
• Pedals: Wellgo 9/16" LU-C33
• Rims: STARS 28" reinforced, triple-wall
• Saddle: Selle Royal Lookin Basic
• Shifters: Shimano Tourney Revo 7-speed
• Tires: 28'' x 1.75 Schwalbe StreetPack Reflex
• Weight: 24.5 kg
• Number of gears: 7
• Fenders: front and rear set, with stays
• Grips: VELO VLG-519AD2, 22.2 x 135 mm / 22.2 x 92 mm
• Kickstand: central, adjustable length, aluminium
• Rack: aluminium, max load 25 kg, with rack straps
• Lighting: rear light Spaninga RL1900 XE 36VDC, E-Bike Version / front light Spaninga Kendo XE 6-36V, E-Bike Version

Frame geometry:

• Top tube length: 600.40 mm
• Head tube length: 161 mm
• Frame size: 482 mm
• Wheelbase: 1105.70 mm
• Seat tube angle: 72.50
• Head tube angle: 70
• Maximum bike load: 125 kg

Useful information:

• Battery capacity is measured in Wh (watt-hours) or Ah (ampere-hours) and directly affects the maximum range on a full charge. Higher capacity means longer range.
• Range is the approximate distance in kilometres you can travel on a full charge. It depends on rider weight, battery capacity, weather, terrain (climbs/descents) and the chosen assistance level. Over several years battery capacity gradually decreases - this is a normal chemical process of lithium-ion cell ageing. Incorrect use or modifications can reduce the maximum range.
• Bike weight is the total weight of all components, including the motor, battery, frame and accessories. Ecobike bikes have an excellent power-to-weight ratio.
• Motor power is the nominal power the electric motor can generate. It does not exceed the power limits set for e-bikes in most countries.
• Maximum motor power is the highest power the electric motor can reach without the speed limiter; achieving it may require replacing some parts to match the correct voltage/current parameters. The user cannot simply select maximum power without certain modifications. Removing the speed limiter requires registering the vehicle as an electric moped and following the applicable traffic rules for mopeds. Unqualified modifications can damage the e-bike system, in which case neither the manufacturer nor the seller is liable for any losses or injuries.
• Battery service life: the stated charge cycles are approximate and may be lower depending on how the battery is used and stored.
• The maximum speed the motor supports is 25 km/h. At this limit the motor switches off and re-engages only when the speed drops. The motor works only while pedalling (pedal assist); the bike has no throttle. Assistance levels and other settings are selected via the handlebar controller.
• Warranty: all EcoBike bikes have a 2-year factory warranty on the frame and parts. The battery has a 1-year warranty. Other warranty terms are on our website. For warranty questions, please contact Bikko.
