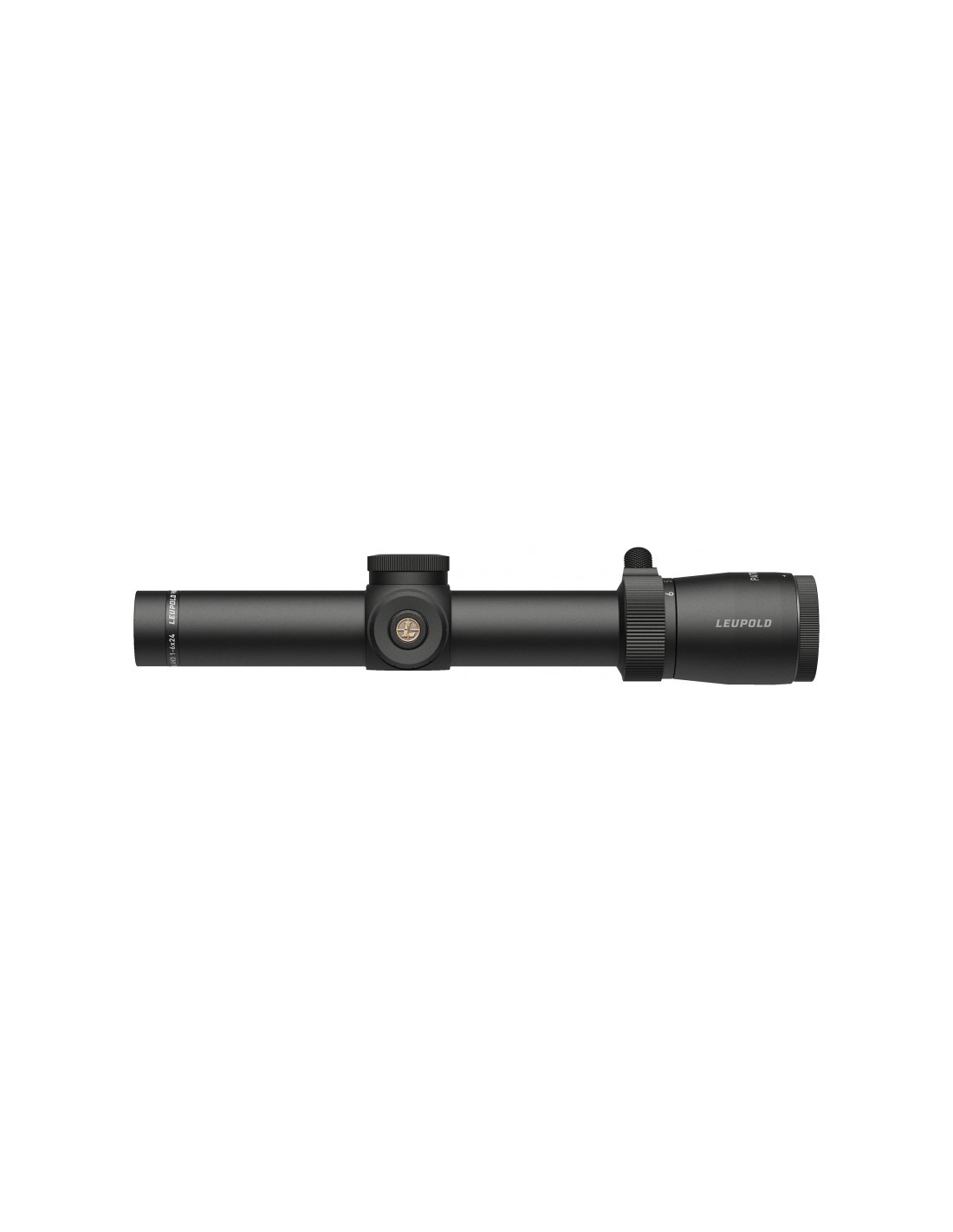

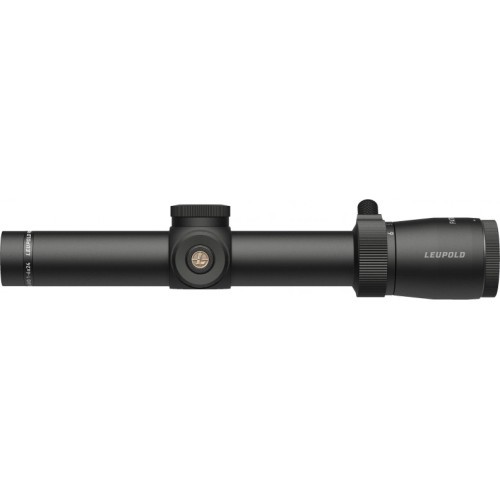

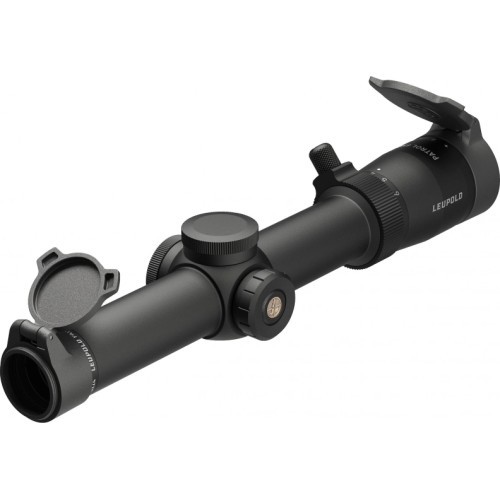

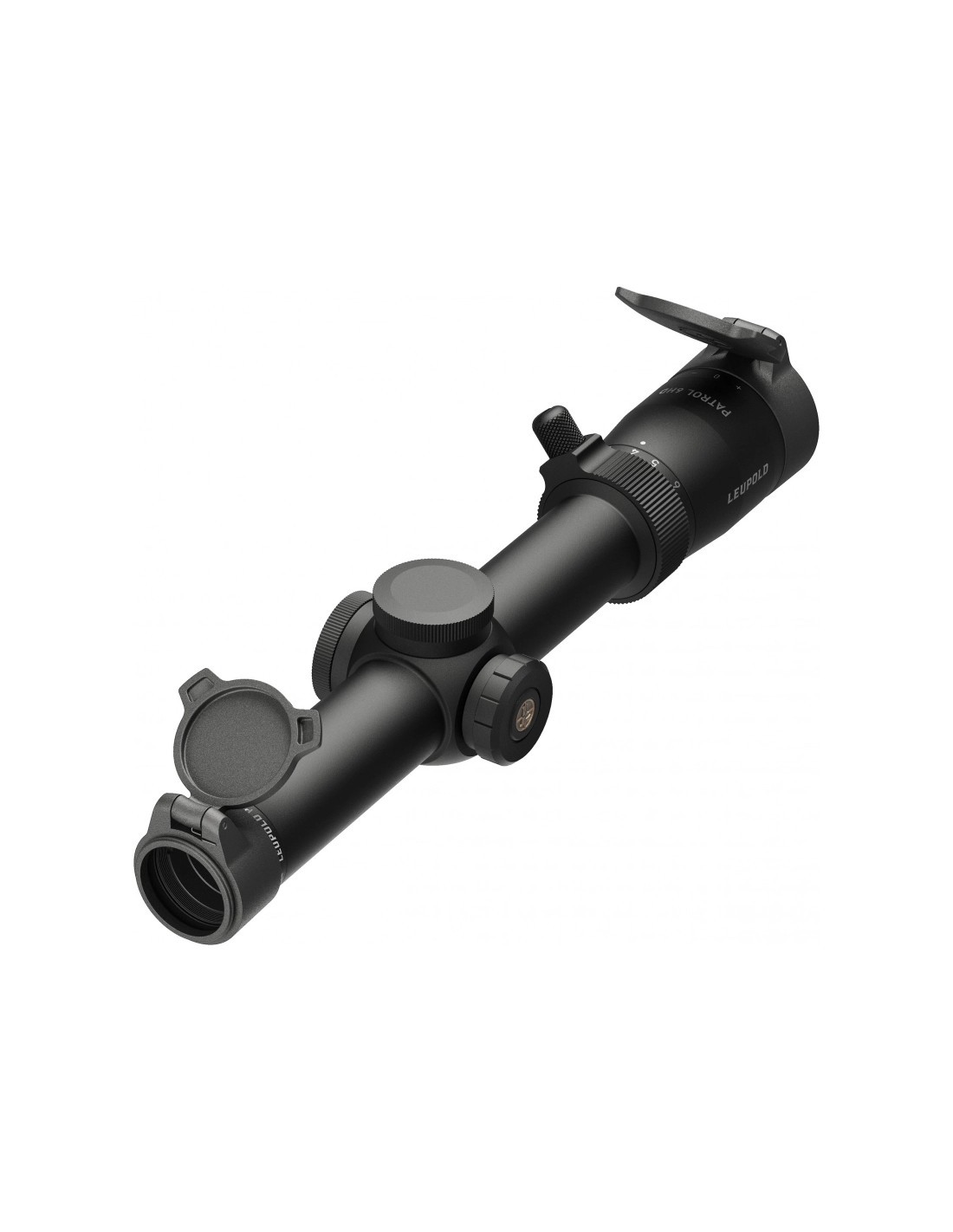

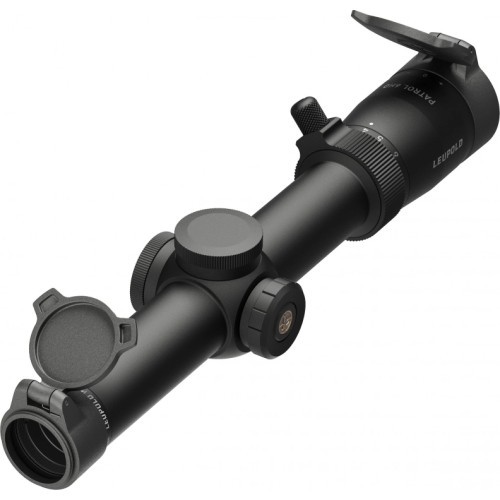

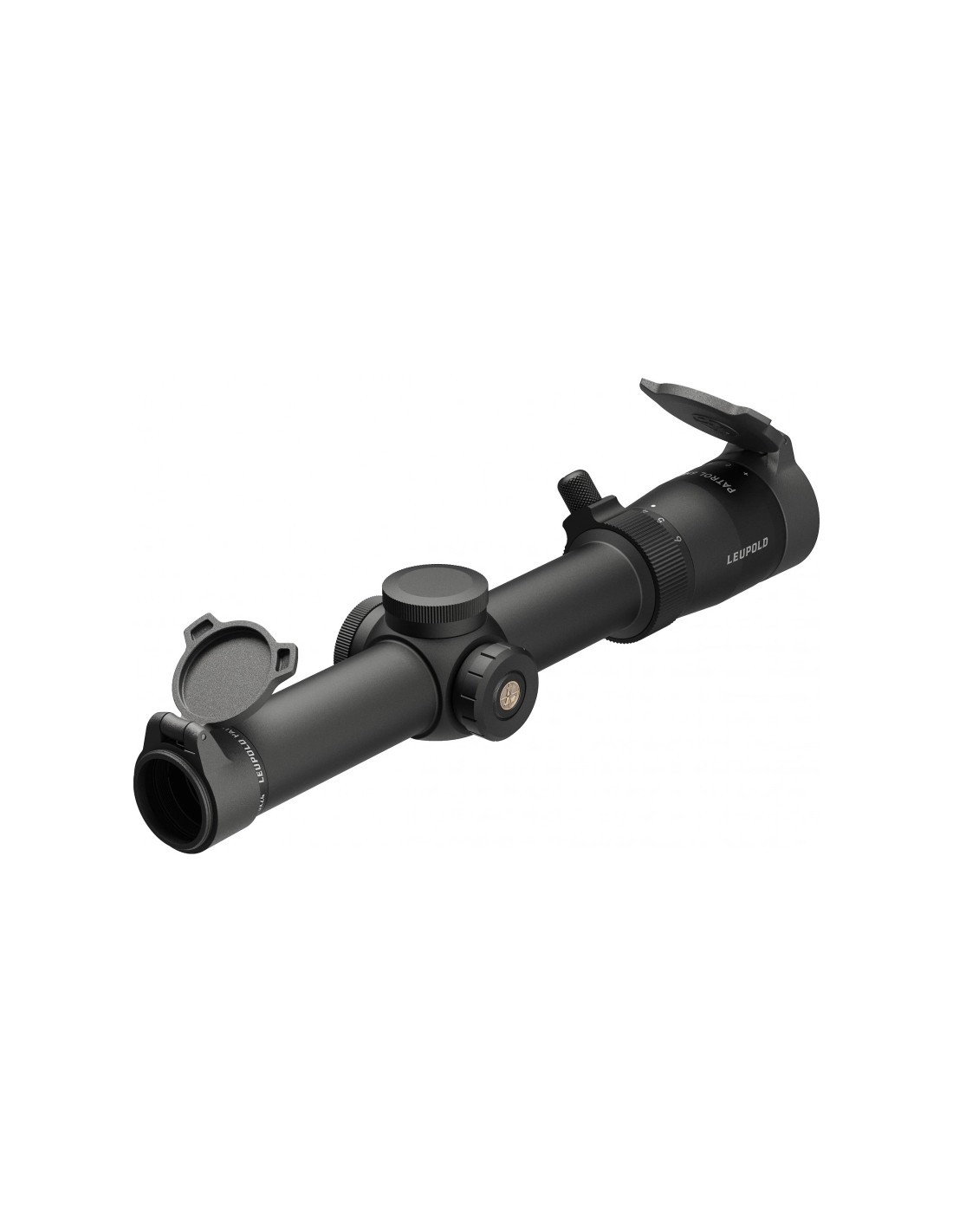

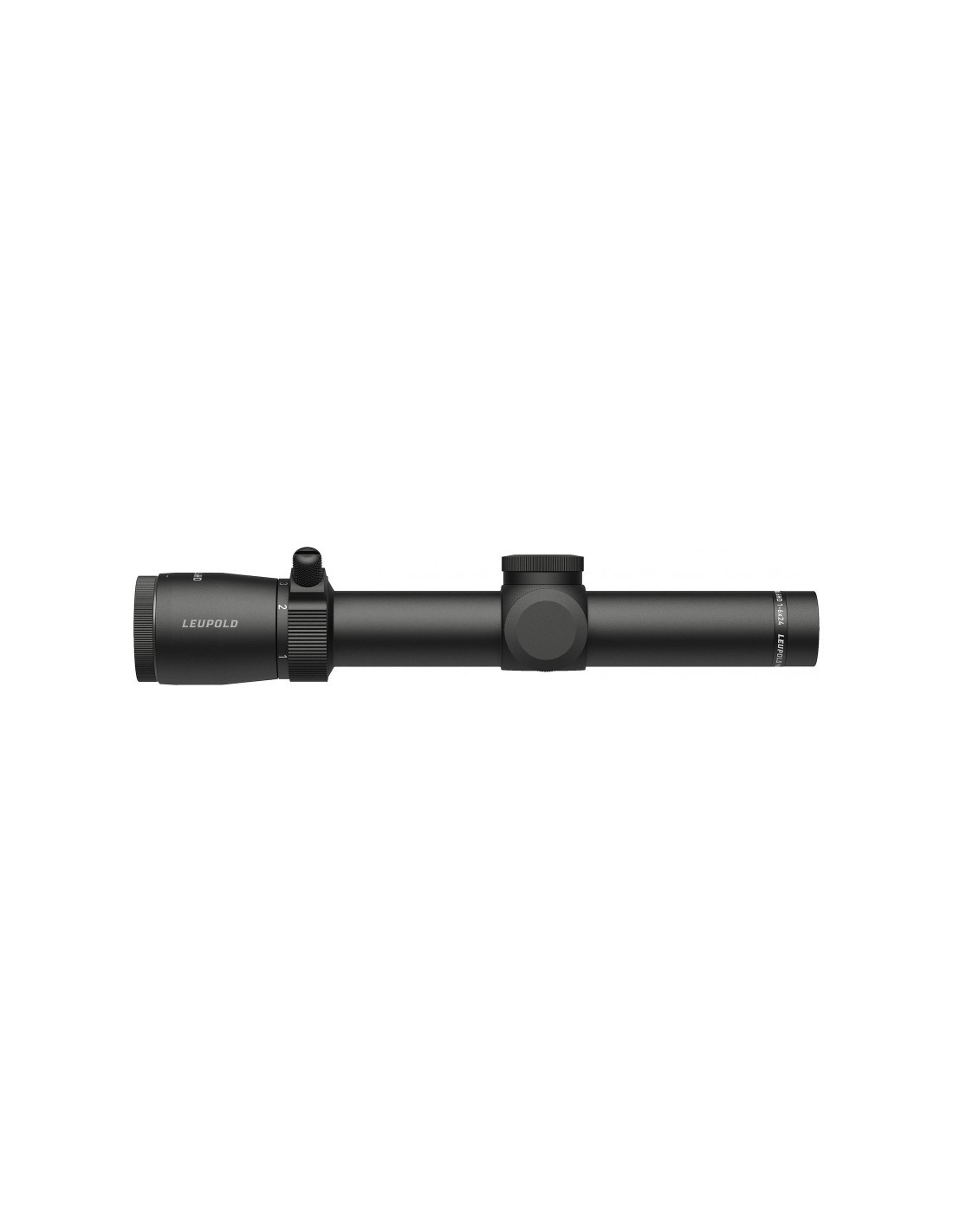

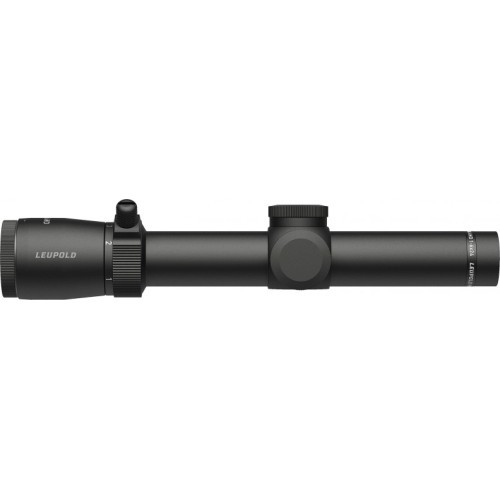

Leupold Patrol 1-6x24 spotting scope

Leupold Patrol 6HD 1-6x24 30mm CDS-ZL2 iR CM-R2 - a new-generation riflescope built for hunters and sport shooters. It features Twilight Max HD optics, a low-profile CDS-ZL2 elevation turret, and an illuminated CM-R2 reticle.

Advantages of the Patrol 6HD series

Twilight Light Max HD light management system:

• Unmatched brightness even in the toughest conditions,
• Enhanced Twilight performance,
• Improves image clarity at dusk (by about 30 minutes),
• Eliminates image blur and stray light reflections,
• High-quality lenses ensure a sharp image edge-to-edge,
• Increases image depth and contrast.

Custom Dial adjustment system - when shooting at long distances, there is no need to correct the point of aim for distance, gravity, and wind effects.

Lightweight yet rugged construction - evenly distributes recoil energy.

Leupold Punisher durability testing - scopes are rigorously tested on the Punisher simulation device, which subjects them to 5,000 recoil impact tests. The device generates impacts with energy 3 times greater than the recoil of a .308 caliber rifle.

30 mm tube provides a wider reticle adjustment range at longer distances.

Fast Focus - an enlarged ring for changing magnification.

Rugged construction - a sealed scope tube that is 100% resistant to internal fogging and weather conditions.

Guard-Ion coating - reduces the adhesion of dirt and water to the lenses and ensures high image clarity.

Illuminated reticle - speeds up and eases aiming in low-light conditions (on select models).

Pop-Up Rezero - protects against accidental setting changes and allows a quick return to the original settings.

Advanced technologies

The Leupold Patrol 6HD 1-6x24 30mm CDS-ZL2 iR CM-R2 is a versatile riflescope suited for hunters on driven hunts, sport shooters in dynamic competitions, and tactical/defensive shooting enthusiasts.

One of the key advantages of Leupold Patrol scopes is their light weight. At 273 mm long, the scope weighs just 380 g, making it one of the lightest in its optics class. The scope has an aluminum (6061-T6) 30 mm diameter tube, which, unlike the 1-inch version, provides a much wider reticle adjustment range - 170 MOA vertically and horizontally. The eyepiece features a ring with an enlarged grip for fast and convenient magnification changes within the 1-6x range.

The scope tube is filled with a patented gas blend (argon and krypton), which eliminates the effects of thermal shock, reduces gas diffusion inside the scope, and completely eliminates internal lens fogging issues. The waterproofing used guarantees 100% resistance to weather conditions. The scope was rigorously tested on the Punisher simulation device, undergoing 5,000 recoil endurance tests. The device generates impacts with energy 3 times greater than the recoil of a .308 caliber rifle, so the scope can be used with confidence on sporting and hunting firearms.

Leupold scope for hunters and sport shooters

American manufacturer Leupold pays special attention to image quality and brightness. The optical system uses high-quality lenses and the Twilight Light Max management system, responsible for high light transmission and reduced stray light.

The visible image is sharp and clear edge-to-edge, as well as deep, allowing the scope to be used for hunting at dawn and dusk (adding about 30 minutes of usable light). High-quality lenses increase the transmission of blue and red light and balance colors for maximum contrast. Glare is compensated for by special mechanical structures and blackened lens edges. The outer lens surfaces are coated with durable Guard-Ion coating, which protects the optics from scratches and reduces the adhesion of water, dust, and fingerprints.

Riflescope with illuminated reticle

The illuminated reticle, optimal magnification, and wide field of view (from 40.3 to 6.4 m / 100 m) make the scope ideal for group hunting and 3Gun shooting competitions.

The CM-R2 reticle is designed for instinctive, dynamic shooting at short distances, where lower magnification is sufficient. Compared to other reticles, the CM-R2 allows the shooter to estimate distance to the target and shoot more flexibly. The CM-R2 reticle consists of a fine crosshair with an open top and a central 0.5 MOA dot surrounded by a 5.0 MOA circle. With its open top and illuminated aiming point, the reticle excellently combines precision and speed. Clear marks on the horizontal stadia lines can be used to track targets moving at 5, 10, and 15 mph respectively. This unique combination of features allows the scope to be used for shooting in open terrain, in forests, and on IPSC courses.

The illuminated aiming mark (circle and dot) automatically draws the shooter's eye to the center of the reticle, making aiming fast and instinctive. Illumination (7 levels) is adjusted via a side-mounted button. The first 3 settings are for low-light conditions, the rest for daylight. The adjustment range allows for comfortable use regardless of lighting and time of day.

Locking turrets with quick rezero system

The scope uses a practical Pop-Up Rezero system (activated by pressing a button), which protects against accidental setting changes and allows an instant return to the original settings without additional tools. Zero Lock system eliminates the possibility of accidentally changing elevation settings and allows a quick and precise return to zero. Turrets adjust in 1/4 MOA increments. The reticle adjustment range is 170 MOA vertically and horizontally.

CDS system

The scope features the innovative CDS (Custom Dial System), which allows the shooter to customize the elevation turret to match the specific ammunition's ballistics and distance. CDS-ZL2 is a low-profile adjustment turret that protects against accidental setting changes. The Zero Lock system allows settings to be easily restored with the push of a button. Once properly configured, CDS enables precise, repeatable long-range shooting after a short amount of practice, without needing a ballistic chart.

Scope with a 30-year warranty

For stable zero retention, the erector system is constantly driven by a dual progressive spring (30% stronger than a linear spring). Its job is to absorb the impact caused by the firearm's recoil and extend the service life of internal components. High manufacturing precision of the main components guarantees repeatable hits at different magnifications. The scope's high quality is further confirmed by the manufacturer's 30-year warranty.
