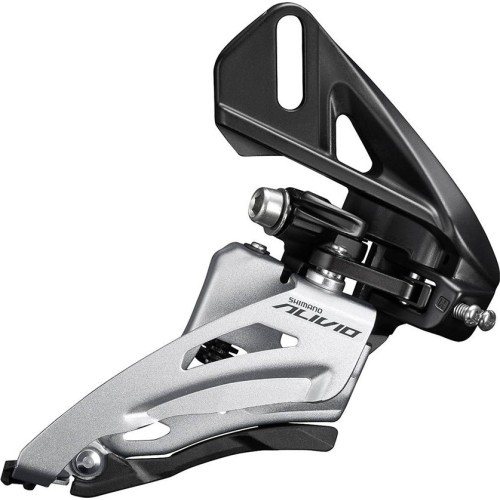

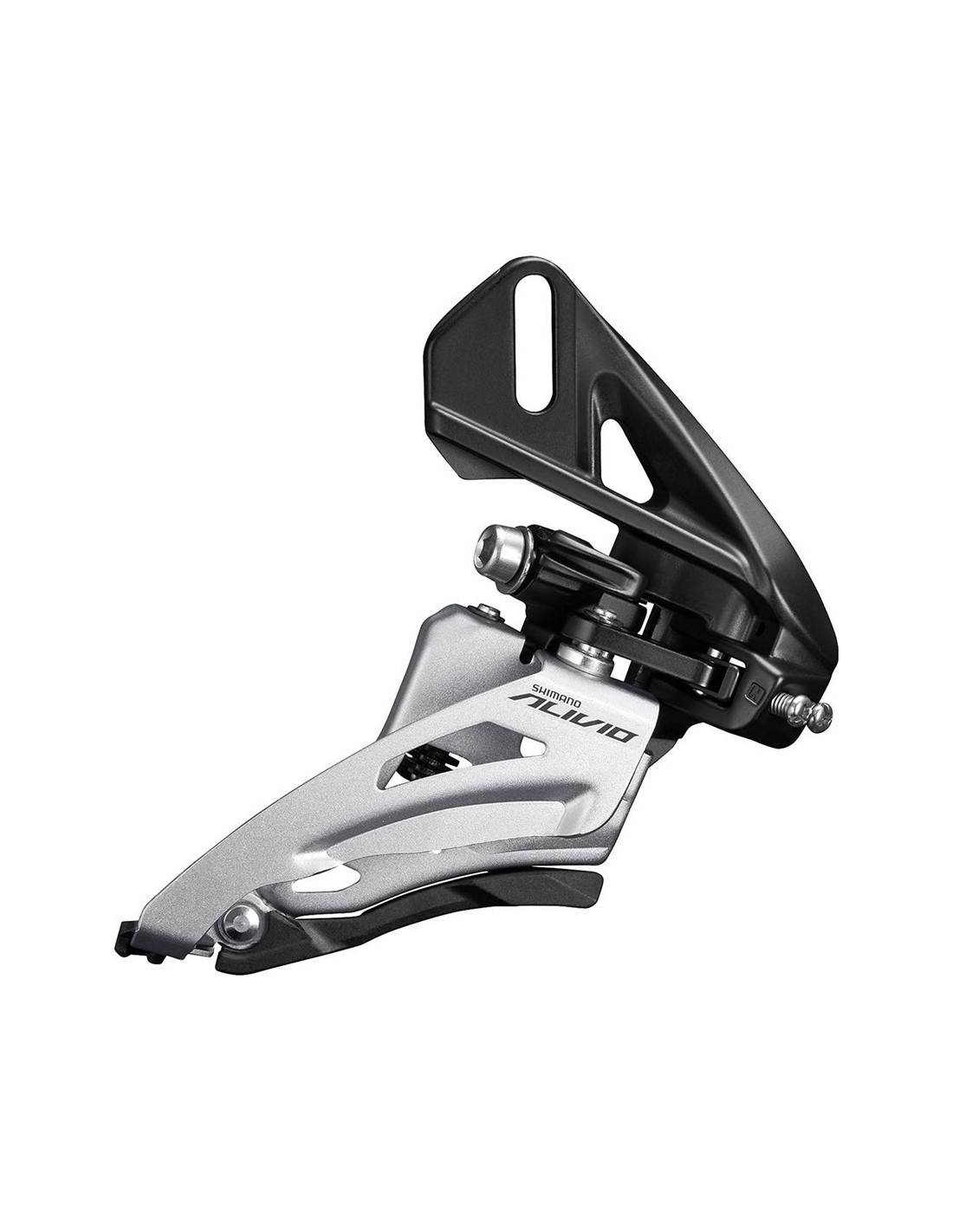

Shimano Alivio FD-M3120-D Front Derailleur, 2x9 speed, 64-69°, Side Swing

Shimano ALIVIO FD-M3120 2x9-speed front derailleurs use the new SHIMANO SIDE SWING technology, which ensures improved cable routing and light, smooth operation. The new design also increases clearance for large wheels and short chains.

• Designed for use with a front double chainring set
• Smooth and quiet front shifting on the trail
• More powerful shifting to the outside
• Wider pull range reduces chain friction on bikes with rear suspension
• Extra-wide range with front double 36-22T chainrings
• Compatible with various frames
• Compatible with 2.3-inch tires on wider rims
• Single specification for 48.8 mm and 51.8 mm chainline
• Side Swing
• Chain pull type: from above (Front-Pull)
• Angled clamp band / fixing
• Angled travel adjustment screw
• Chain support angle: 64-69
• Compatible chain: CN-HG53 9-speed
• Link bushings: 4
• Direct Mount
• Gears: 2 x 9
• Top gear teeth: 36T
• Total capacity: 14T
