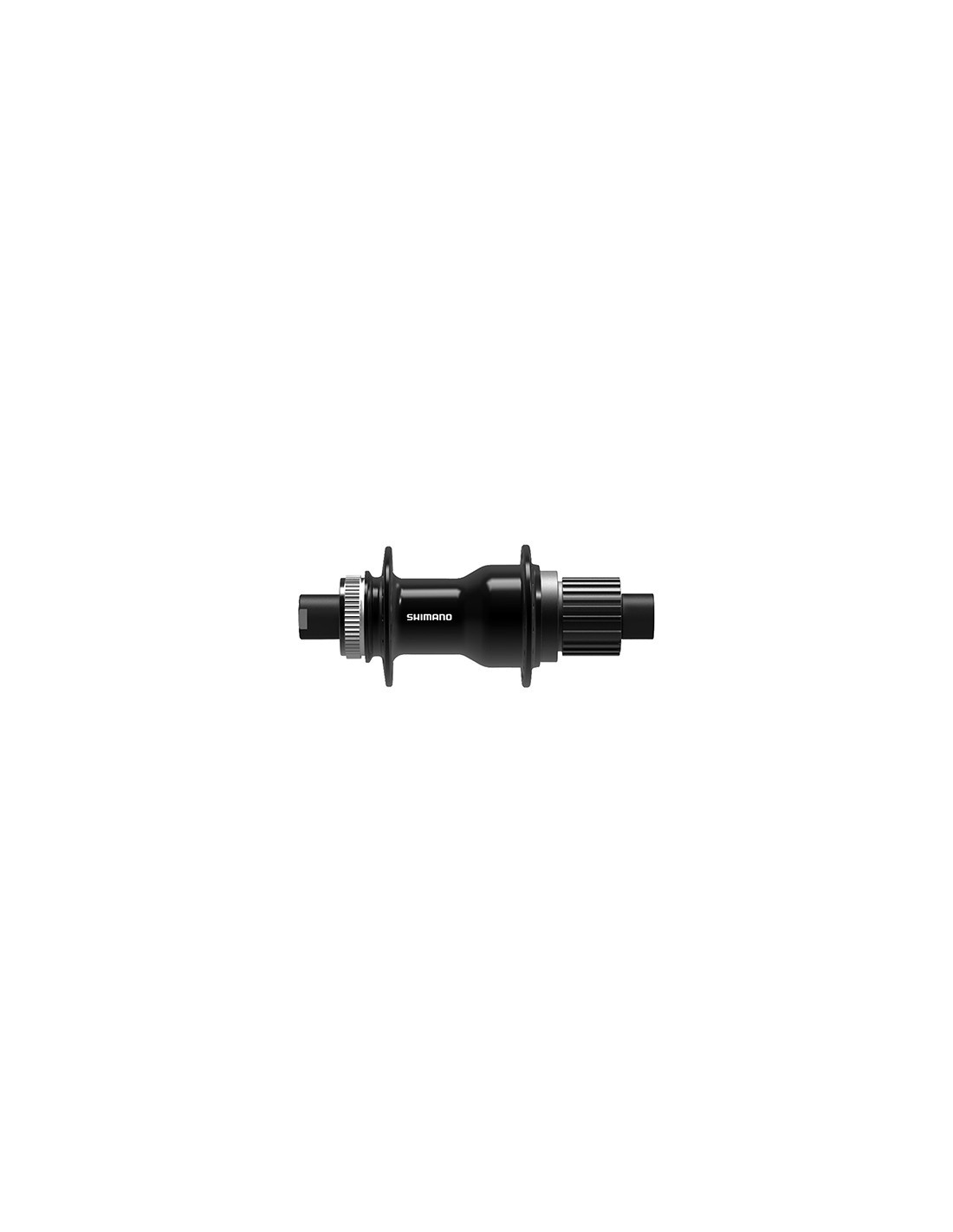

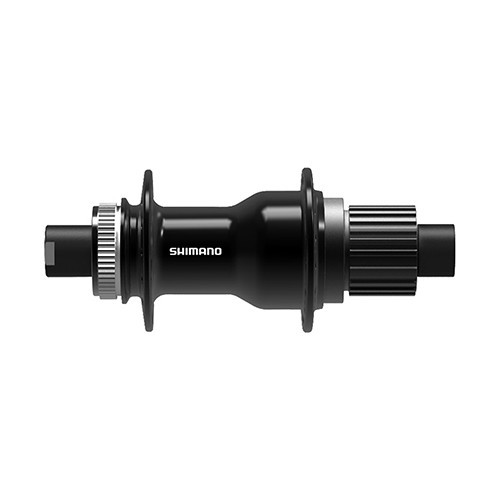

Shimano FH-TC500-MS-B rear hub // 12-speed, Center Lock disc brakes, Micro-Spline, cassette, 12x148mm, 32H

Shimano FH-TC500-MS-B 12-speed Micro-Spline rear hub with Center-Lock mounting, 12x148 mm

The Shimano FH-TC500-MS-B rear hub with Center-Lock disc brake mounting delivers the well-known reliability and performance, adapted for 12-speed Micro-Spline cassettes and built around the Boost E-Thru thru-axle design. A sturdy, easily adjustable and long-lasting FREEHUB rear hub for disc brakes, with high-quality seals.

Features - Shimano FH-TC500-MS-B 12-speed Micro-Spline, Center-Lock rear hub | 12x148 mm

• Easy installation and reliable performance on the trails
• Easy disc brake rotor mounting with spline fitting and lock ring
• Sturdy and lightweight 12 mm E-THRU axle locking system
• Labyrinth and contact sealing
• Smaller spline diameter for a 10T top gear
• O.L.D.: 148 mm
• Compatible with #13 and #14 spokes
• Compatible ONLY with Shimano Micro-Spline cassettes!

Product specifications

• Intended use: MTB, Trekking
• Model: FH-TC500-MS-B
• Freehub body: Shimano 12-speed
• Brake type: Center Lock disc
• Flange distance: 61.45 mm
• Offset: 7.6 mm
• P.C.D.: left 50.5 mm / right 51.5 mm
• Flange diameter: left 59.3 mm / right 60.3 mm
• Bearings: labyrinth and contact seals
• Type: E-Thru Axle Boost
• Axle length: 12x148 mm
• Spoke holes: 32 holes
• Material: aluminium and steel
• Colour: black
